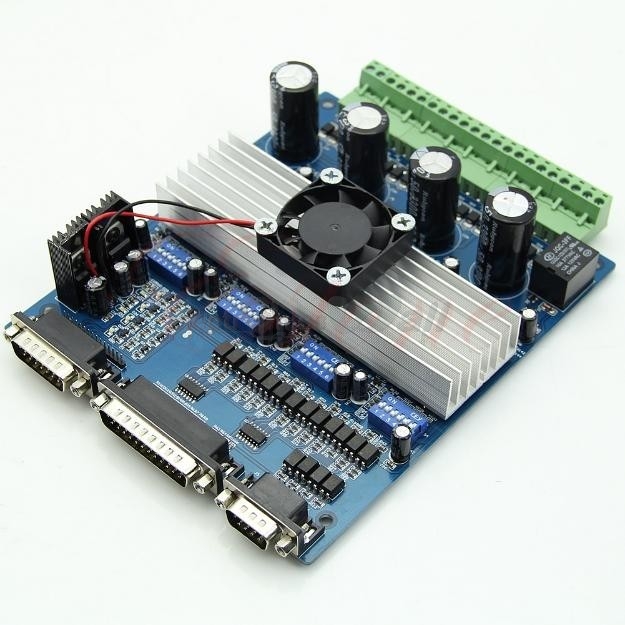

4 Axis CNC Controller TA8435H Stepper Motor Driver Board Mach 2 3 For CNC Machine

• Toshiba TA8435H chip – maximum 2.5A drive current !
• 1 – 1/8 microstep setting
• Chip 555 adapts the SOP( SURFACE MOUNT)
• In application of the SMT solder-reflow technic.
• Add the 24V and 5V indication LED light
• Use the DCDC as the isolation of the front and the en

Document Download: https://drive.google.com/drive/folders/0B4FTB8_CQRXMaDQtTXItdE9MdVk?usp=sharing

The new design for the T8435: the 4 axis T8435 stepper motor driver . In adaption of the prono position 8435 chip , we install the larger thermal sink in the bottom, and adapt the FR307 heavy current diode. The new design of the wire-connection and the pin-insert, this two-way input design makes the connection more convenient.The semi-flow uses the 555 chip.

Features:

• Toshiba TA8435H chip – maximum 2.5A drive current !
• 1 – 1/8 microstep setting
• Chip 555 adapts the SOP( SURFACE MOUNT)
• In application of the SMT solder-reflow technic.
• Add the 24V and 5V indication LED light
• Use the DCDC as the isolation of the front and the end power supplys, in order to protect the parallel ports
• The manual control connector and the limit connector use the DB15 and DB9 connection port support the relay extension
• Can extend the 5th axis

Toturials : http://reprap.org/wiki/4_Axis_TB6560_CNC_Stepper_Motor_Driver_Board_Controller
