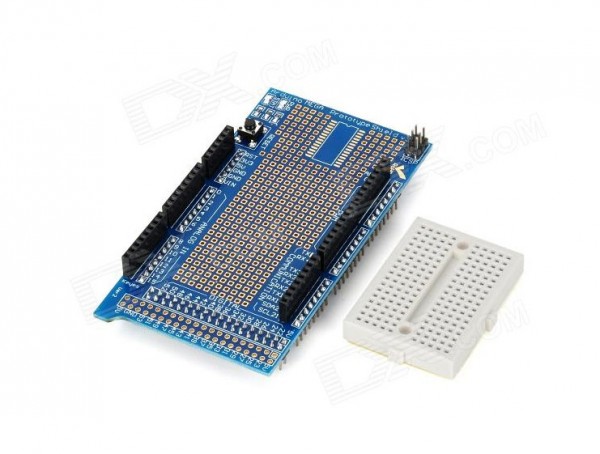

Arduino Mega Prototype Shield V3 with Mini Breadboard

@ expert peshawar

The Arduino Mega Prototype Shield V3 with Mini Breadboard makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project or use it with a small solderless breadboard to quickly test circuit ideas without having to solder.

 450.00

Category:

The Arduino Mega Prototype Shield V3 with Mini Breadboard makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project or use it with a small solderless breadboard to quickly test circuit ideas without having to solder.

Arduino Mega Prototype Shield V3 with Mini Breadboard adopts the prototype V3 gold PCB sink process, mainboard golden square pad spacing small, welding components more convenient; SOP28 SMT components encapsulation, make Arduino electronic lovers more handy, not be straight bound by inserted components.

It provides quick and safe prototyping. Arduino Mega Prototype Shield V3 connected with Arduino through stacks and gives an opportunity to connect additional shield up. You can start advanced developing with setting components on small solderless breadboard (included) and finish mounting with soldering on the shield as complete project.

Arduino Mega Prototype Shield V3 includes solder area with GND and VCC lines (providing 5V or Vin power by Arduino), solder surface for SOIC (up to 14 contacts), 3 colored LEDs (red, green, blue) with input for soldering or female heads, one switch button with input for connection and RESET button. LEDs and buttons can be connected to any Arduino pin or to installed components.

There is also a soldering position reserved for SMD chip on the Arduino Mega Prototype Shield V3. You can easily solder SMD ICs on the prototyping area to test them with your Arduino board.
It also extends out a row of power and ground through-holes, giving enough port resources.
You can even stick a tiny 170-holes breadboard on the prototyping area. You can weld elements on the shield directly or connect circuits with tiny breadboard.

Features: –

  • The shield can support being fully assembled with Arduino MEGA
  • Support soldering components directly on this shield
  • Support sticking the mini breadboards on this shield
  • Reset button up top
  • Mainboard aureate quadrate
  • With SOP28 SMT components encapsulation
  • With PWR & STAT indicator

Arduino Mega Prototype Shield V3 Specifications: –

  • Arduino MEGA / MEGA2560 Proto Shield prototype expansion board with Immersion Gold PCB processing technology, motherboards, small gold square pad spacing, welding components easier.
  • SOP28 SMD component package to be more handy Arduino electronics enthusiasts will not be directly insert bound components.
  • The board can receive Arduino MEGA / MEGA2560 seamless plug controller, directly soldered to the above components to complete a variety of prototype circuit, you can paste Mini bread board, through the 7-color jumper to complete a variety of circuit experiment , board integrated power indicator and status lights, and reset buttons, easy to learn Arduino MEGA / MEGA2560 preferred prototype controller expansion board.
  • Full Compatible with Arduino Mega ATmega1280 / MEGA2560.
  • High sensitivity with integrated low-noise RF input amplifier.

Arduino Mega Prototype Shield V3 Pinout Instructions



Pinout Instructions

Datasheet: –

prototype-shieldv3-mini-bread-board-for-arduino-mega

Package: –

1 x Arduino Mega Prototype Shield V3 with Mini Breadboard
