TCS3200 Color Sensor Module (RGB + Clear)

TCS3200 Color Sensor Module (RGB + Clear) can detect a wide variety of colors based on their wavelength.

This sensor is specially useful for color recognition projects of Arduino such as color matching, color sorting, test strip reading and much more.

TCS3200 color Sensor uses TCS3200D, which is the upgraded version of TCS230D.

TCS3200 is a static object color detection chip which can output different frequency based on different color sensed and then MCU can read the RGB color via frequency collection and conversion.

RGB color sensor module 8-pin SOIC surface mount package, on a single chip has 64 photodiodes.

These diodes are divided into four types. Of which 16 photodiode with a red filter; 16 photodiode with a green filter; 16 photodiode with a blue filter; the remaining 16 without any filter, you can all the optical information through.

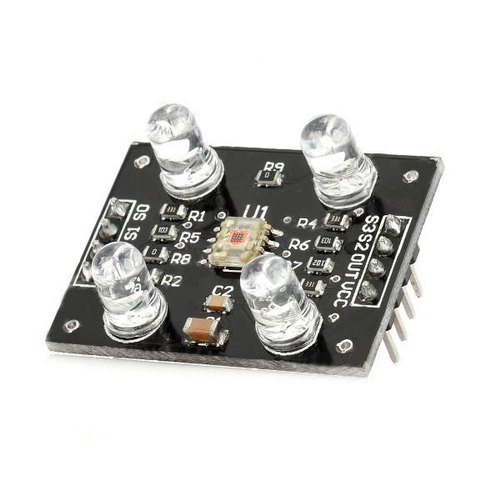

The SR078 TCS230 TCS3200 Detector Module provides all of the pins of the TCS3200 on convenient 0.1″ headers – ideal for use with pcbs, breadboard or stripboard.

Four white leds provide plenty of light for the color sensor and allow you to use the module in any ambient light.

Color sensor TCS3200 module requires only a single supply voltage between 2.7v and 5.5v – making it compatible with nearly all common microcontrollers, including pics, avrs, arm, Arduino and more.

At the heart of the Color Detector Module is an inexpensive RGB sensor chip from Texas Advanced Optoelectronic Solutions – TCS230.

The TCS230 Color Sensor is a complete color detector that can detect and measure an almost infinite range of visible colors.

TCS3200 Detector Module detects color with the help of an 8 x 8 array of photodiodes, of which sixteen photodiodes have red filters, 16 photodiodes have green filters, 16 photodiodes have blue filters, and remaining 16 photodiodes are clear with no filters.

Features: –

• imported chips TCS3200 PCB board with gold plating
• TCS3200 is the TCS230 upgrade version, the better
• Input Voltage: 3V ~ 5V.
• Best Detection Range: 10mm.
• High-resolution conversion of light intensity to frequency.
• Chip pins all has drawn for standard 100.
• Put the needle (2.54 mm).
• Mil-convenient for bitmap board.
• Programmable color and full-scale output frequency.
• Communicate directly with a microcontroller.
• Low-profile surface mount package.
• White LED, can control the on / off.
• Can detect non-luminous object color

TCS3200 Color Sensor Module Specifications: –

• Power: 3V to 5V
• Size: 28.4 x 28.4mm (1.12 x 1.12″)
• Interface: digital TTL
• High-resolution conversion of light intensity to frequency
• Programmable color and full-scale output frequency
• Communicates directly to microcontroller

TCS3200 Color Sensor Module Pin Description: –

Header one on the left side of the board:

S0: Output frequency scaling selection input (along with S1)
S1: Output frequency scaling selection input (along with S0)
OE: Output Enable – if held low, the output of the module is turned on
GND: Ground – connect to 0V

Header two on the right side of the board:

S3: Photodiode type (along with S2)
S2: Photodiode type (along with S3)
OUT: Output – A square wave appears here showing the intensity of the detected color
VCC: Power – connect to 2.7V-5.5V

The Photodiode type pins allow you to pick which color light you are currently detecting:

S2 S3 Photodiode type
Low Low Only red light
Low High Only blue light
High Low No filter
High High Only green light

Package: –

1 x TCS3200 (RGB + Clear) Color Sensor Module
