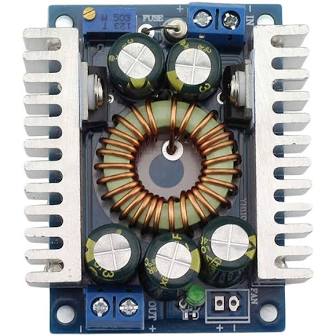

XL4016 DC DC Step Down Buck Converter 8A 1.25V/36V

XL4016 DC DC Step Down Buck Converter is a powerful and versatile converter that can be used in a variety of applications. It is a great choice for anyone looking for a high-efficiency, low-ripple, and easy-to-use converter.

XL4016 DC DC Step Down Buck Converter is a high-efficiency, low-ripple, 180kHz PWM buck converter that can be used to step down DC voltages from 8V to 40V to an output voltage of 1.25V to 36V. The converter has a maximum output current of 9A and a maximum output power of 300W.

Buck Converter XL4016 is suitable for a wide range of applications, including LED drivers, motor controllers, and power supplies.

The XL4016 Module is a very versatile converter and can be used in a variety of ways. For example, it can use to power a LED strip from a 12V battery, or to control the speed of a DC motor. The converter is also very easy to use, and can configure by simply adjusting the output voltage potentiometer.

300W 9A Buck Converter uses two XLSEMI XL4016 voltage regulators to reduce input voltages from 7 – 40 V to adjustable output voltages between 1 and 35 Volts. The large heat sinks enables high output currents of up to 8A max and a limiting output of 300W.

The second trimmer on the board is used to set up the current limit. The voltage regulator has excellent linearity regulation and load regulation. With multiple protection: over-current protection, over-temperature protection and short circuit protection, etc

This Adjustable Power Supply Module helps you to power a high power load with a stable voltage. This has excellent linearity regulation and load regulation with multiple protection.

Features : –

XL4016 Buck Step Down Converter is a 180KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 9A load with high efficiency and low ripple.

• High Quality Product
• High power load with a stable voltage
• Short circuit protection
• Overtemperature protection
• Low output ripple,
• high frequency capacitor reduces output ripple.
• Suitable for LED drivers.

XL4016 DC DC Step Down Buck Converter Specifications : –

Here are some of the key features of the XL4016 DC DC Step Down Buck Converter:

• High efficiency: Up to 94% conversion efficiency
• Low ripple: <1% ripple
• 180kHz PWM frequency
• Maximum output current: 9A
• Maximum output power: 300W
• Wide input voltage range: 8V to 40V
• Adjustable output voltage: 1.25V to 36V
• Easy to use

XL4016 DC DC Step Down Buck Converter Applications : –

XL4016 DC DC Step Down Buck Converter is a great choice for anyone looking for a high-efficiency, low-ripple, and easy-to-use converter for a variety of applications.

Here are some of the applications of the XL4016 DC DC Step Down Buck Converter:

• LED driver
• Motor controller
• Power supply
• Solar charger
• Battery charger
• Lab equipment
• Test equipment
• DIY projects

Package : –

1 x XL4016 DC DC Step Down Buck Converter 8A 1.25V/36V
