DSN-VC288 Digital DC 100V 10A Voltmeter Ammeter

DSN-VC288 is a digital DC voltmeter and ammeter that can measure voltage and current in DC circuits. It has a voltage measurement range of 0-100V DC and a current measurement range of 0-10A DC. The resolution of the voltmeter is 0.1V and the resolution of the ammeter is 1mA. The accuracy of the voltmeter is ±1% and the accuracy of the ammeter is ±1%. The refresh rate of the display is 300ms. The DSN-VC288 has a 3-digit LED display that shows the measured voltage and current. The meter is powered by a 4-30V DC power supply.

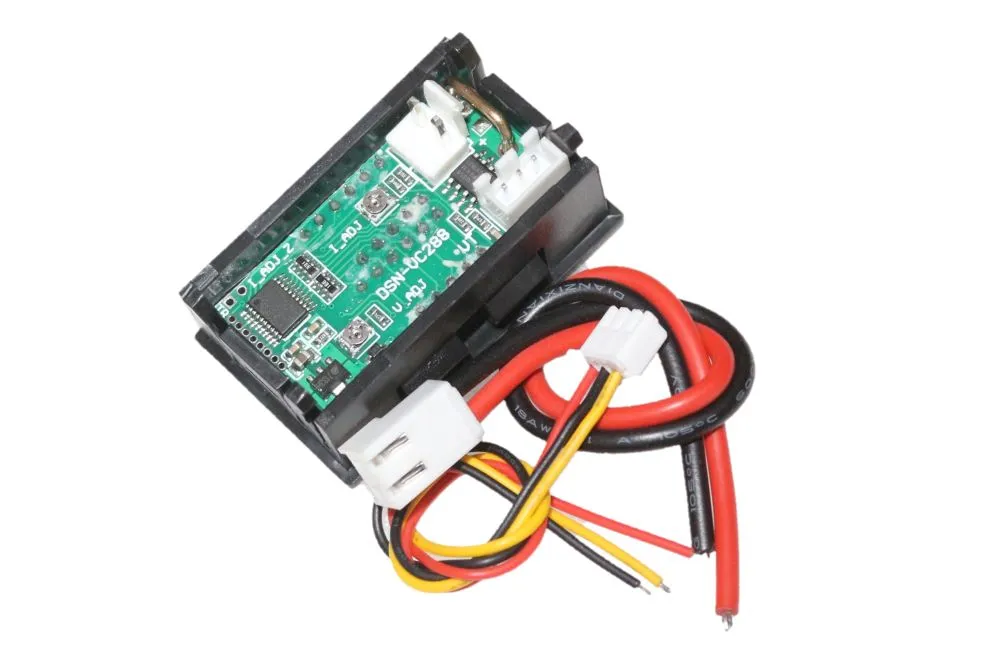

This DC 100V 10A Ammeter Voltmeter is consist of 0.28 inch 5 wire red LED. With 100V DC can be measured by this meter with 0.1V resolution. This volt ammeter contains 2 wire harnesses. 2 poles with RED and BLACK lead used to provide power for the meters. this meter is portable and small in size. DSN-VC288 DC 100V 10A shows volt and ammeter at the same time on the same screen.

The DSN-VC288 has a 0.28 inch 5 wire red LED display that shows the measured voltage and current at the same time on the same screen. It also has two wire harnesses, two poles with red and black leads that are used to provide power for the meters.

It can be operated from the module, a car battery or other voltage sources up to a maximum of 30V and consumes only a maximum of 20mA. The entire module comes in a self-retaining, plug-in housing that has only a 2.5 mm thin frame when installed. The segment display with its bright red (voltage) and blue (current) LEDs at a total display area of 23 x 18 mm, it is easy to read even in bright light or poor visibility.

Note:-

The maximum input voltage cannot exceed 30V, otherwise there is the danger of burning

DSN-VC288 Digital DC 100V 10A Voltmeter Ammeter Features : –

The DSN-VC288 is a portable and small digital DC voltmeter and ammeter that can measure voltage and current in DC circuits. It has a voltage measurement range of 0-100V DC and a current measurement range of 0-10A DC.

Here are some of the features of the DSN-VC288:

• Voltage and current measurement
• Wide measurement range
• High resolution
• High accuracy
• Fast refresh rate
• Small and lightweight
• LED display
• Power supply

DSN-VC288 Digital DC 100V 10A Voltmeter Ammeter Specifications : –

The accuracy of the DSN-VC288 is ±1% for both voltage and current measurement. This means that the meter is accurate to within 1% of the actual value of the voltage or current being measured. The power supply range of the DSN-VC288 is 4-30V DC. This means that the meter can be powered by a power supply that provides 4 to 30 volts DC.

Here are some of the specifications of the DSN-VC288 Digital DC 100V 10A Voltmeter Ammeter:

• Voltage measurement range: 0-100V DC
• Current measurement range: 0-10A DC
• Power supply range: 4-30V DC
• Resolution: 0.1V for voltage, 1mA for current
• Accuracy: ±1%
• Refresh rate: 300ms
• Display: 3-digit LED display
• Size: 48mm x 29mm x 22mm
• Weight: 20g

DSN-VC288 Digital DC 100V 10A Voltmeter Ammeter Applications : –

The DSN-VC288 is a versatile and reliable digital voltmeter and ammeter that can use in a variety of applications. It is perfect for hobbyists, engineers, and technicians who need to measure voltage and current in DC circuits.

Here are some of the applications of the DSN-VC288:

• Testing electronic circuits
• Troubleshooting electrical problems
• Monitoring battery performance
• Testing power supplies
• Educational purposes

Package : –

1 x DSN-VC288 Digital DC 100V 10A Voltmeter Ammeter
