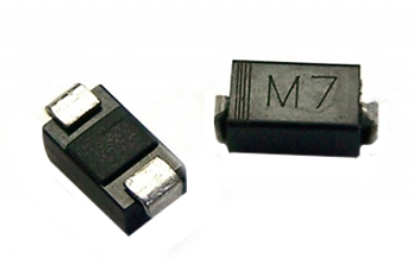

1N4007 M7 SMD Diode 4007 1A Rectifier Diode

1N4007 M7 SMD Diode 4007 is a surface mount version of the standard 1N4007 diode. It is a rectifier diode that allows current to flow in one direction only. It is commonly used in power supplies, inverters, and other electronic devices.

1N4007 SMD is a reliable and versatile diode that can use in a wide variety of electronic circuits. It is a popular choice for use in DIY projects and commercial applications.

M7(1N4007) Diode is a Surface Mount General Rectifier and has a Plastic Passivation Junction Reverse Voltage of 50 to 1000 Volts with Forward Current of 1.0 Ampere.

It is a glass passivated chip junction diode with high forward surge capability. It is ideal for use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer and telecommunication.

1N4007 SMD Diode has a low forward voltage drop, which means that it loses less power when it is conducting current. This makes it a good choice for applications where efficiency is important.

The diode also has a low reverse leakage current, which means that it draws very little current when it is not conducting current. This helps to extend the battery life of devices that use the diode.

M7 is a high voltage surface mount diode that is analogous to the popular 1N4007, with a high reverse breakdown voltage of 1kV and a continuous current capacity of 1A. It is mainly found in bridge rectifiers in power supplies and other electronic appliances.

Features : –

SMD M7 diode is a surface mount rectifier diode that can handle up to 1000 volts and 1 amp of current. The SMD M7 diode has a number of features that make it a good choice for a variety of applications, including,

• Smaller size
• Lighter weight
• Easier to solder
• Better heat dissipation
• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• High forward surge capability

1N4007 M7 SMD Diode Specifications : –

The M7 is a high voltage rectifier diode with a high continuous current capacity of 1A. It can use in rectifier and reverse voltage protection applications in electronic appliances like chargers. Although the stated continuous current is 1A, the diode can handle more current if the duration of the pulse is short enough, up to 30A if a single half-sine wave at 60Hz is passed through it.

• 1 amp current rating
• 1000 volt reverse voltage rating
• Low forward voltage drop
• Low reverse leakage current
• Available in a variety of packages
• Reliable and versatile

1N4007 M7 SMD Diode Applications : –

If you are looking for a reliable and versatile surface mount rectifier diode, the 1N4007 SMD is a good option. It is available in a variety of packages and can be used in a wide variety of electronic circuits.

Here are some of the applications of the 1N4007 SMD:

• Power supplies
• Inverters
• Amplifiers
• LED drivers
• Motor controllers
• Solar cells
• Welding equipment
• Test equipment

Package: –

1 x 1N4007 M7 SMD Diode 4007 1A Rectifier Diode
