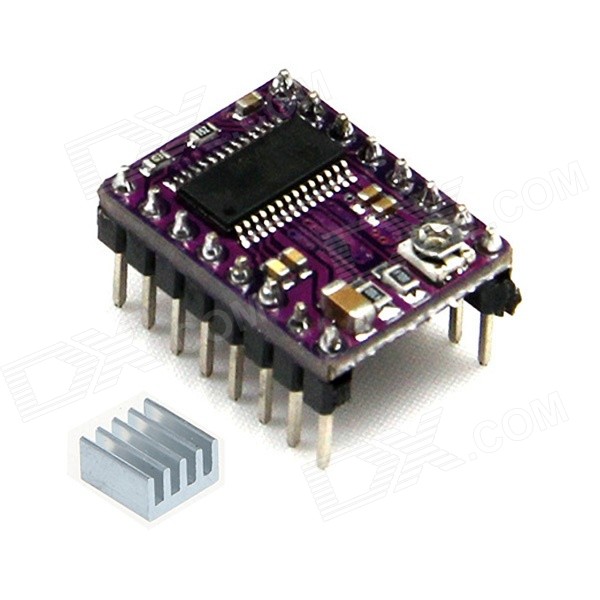

DRV8825 Stepper Motor Driver

The DRV8825 stepper motor driver is a popular and versatile driver that can be used with a variety of stepper motors. It is a H-bridge driver, which means that it can use to control the speed and direction of a stepper motor.

The DRV8825 also has a number of features that make it a good choice for a variety of applications. if you want to construct your own CNC machine or 3D printer, you’ll need a dedicated stepper motor driver like the DRV8825.

Due to the simplicity of the step motor control and the variety of stepping modes provided by the DRV8825 driver, it is an ideal solution for building applications that require precise and reliable stepper motor control, such as the movement control of beds, heads, and assemblies in various CNC plotting, milling, and 3D printer designs.

This integrated motor driver makes interfacing with a microcontroller super easy as you only need two pins to control both the speed and the direction of the stepper motor.

The driver has a maximum output capacity of 45 V and ± 2 A which is great for driving small to medium-sized stepper motors like a NEMA 17 bipolar stepper motor.

The DRV8825 driver module is a small, easy-to-use board that can be used to control stepper motors. It is based on the popular DRV8825 stepper motor driver chip, which provides high current and microstepping support. The DRV8825 driver module is compatible with a wide range of stepper motors, including NEMA 17 and NEMA 23 motors.

Overall, the DRV8825 driver module is a powerful and versatile stepper motor driver that is a good choice for a variety of applications. It is affordable, easy to use, and has a number of features that make it a good choice for both beginners and experienced users.

Features : –

The DRV8825 also has a number of features that make it a good choice for a variety of applications, including:

• Adjustable current limiting: This allows you to set the maximum current that the driver will provide to the stepper motor. This is important for preventing the motor from overheating or from being damaged.
• Overcurrent and overtemperature protection: These features will automatically shut down the driver if the current or temperature exceeds a safe level. This helps to protect the driver and the stepper motor from damage.
• Microstepping: The DRV8825 supports microstepping, which allows you to control the stepper motor with very fine steps. This can be useful for applications that require precise movement, such as 3D printers and CNC machines.
• Easy to use: The DRV8825 is a relatively easy driver to use. It can be controlled using a variety of microcontrollers, and it comes with a number of example projects that you can use to get started.

DRV8825 Stepper Motor Driver Specifications : –

DRV8825 is a micro-stepping driver for controlling bipolar stepper motors which have a built-in translator for easy operation. Thus, we can control the stepper motor with just 2 pins from our controller. The DIR pin will control the rotation direction and the STEP pin will control the steps.

• 45 V maximum supply voltage
• Built-in regulator (no external logic voltage supply needed)
• Can interface directly with 3.3 V and 5 V systems
• Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
• Short-to-ground and shorted-load protection
• 4-layer, 2 oz copper PCB for improved heat dissipation
• Exposed solderable ground pad below the driver IC on the bottom of the PCB

DRV8825 Stepper Motor Driver Applications : –

The DRV8825 driver module is a versatile tool that can use in a variety of applications. It is perfect for robotics, drones, and other DIY projects. It can also use to control the speed of fans, lights, and other devices. The DRV8825 driver module is a great way to add stepper motor control to your projects. It is small, affordable, and easy to use.

• Here are some of the things you can do with a DRV8825 driver module:
• Control the speed of a stepper motor
• Move a stepper motor in a specific direction
• Make a stepper motor rotate
• Create a robotic arm that can move at different speeds
• Build a dimmer for LED lights
• Control the speed of a fan or other device

Package : –

1 x DRV8825 Stepper Motor Driver
