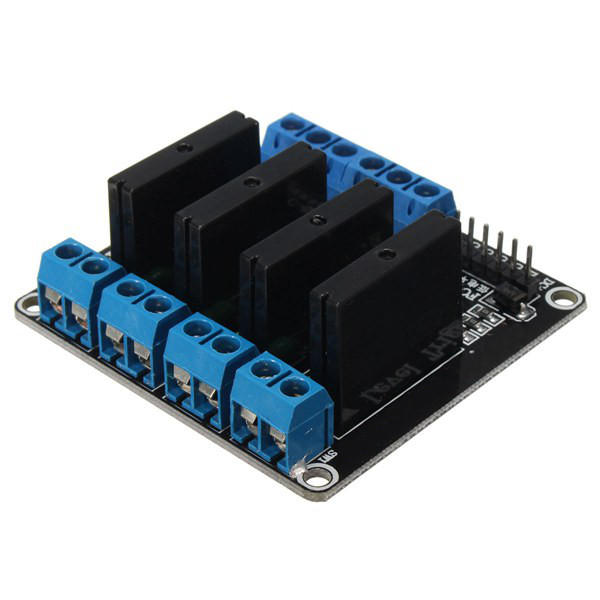

5V 4 Channel SSR G3MB-202P Solid State Relay Module 240V 2A
MODERN HALLROAD
Description
This is 4 Channel 5V Solid State Relay Module Board OMRON for Arduino. The range of relays with the variety of channels are available at hallroad.org check them now by searching relay module
in hallroad.org.
Compares with the traditional mechanical relay, the Solid State Relay (SSR) has many advantages: it has a longer life, with a much higher turn on/off speed and no noise. Besides, it also has
better resistance to vibration and mechanical shock, and better moisture proof performance.
This Solid State Relay Module is based on Omron G3MB, to control current upto 2A@240VAC, can be widely used in various areas such as computer peripheral interfaces, temperature/speed
light adjustment, servo control, petrochemical, medical instrumentations, financial devices, coal, meters, traffic signals, etc.
₨ 750.00
Specifications:
1. 5V Omron solid state relays 240V 2A, output with resistive fuse 240V 2A.
2. Input power supply: 5V DC (160MA)
3. Input control signal voltage: 5V
4. Blue KF301 terminal connection control line is more convenient.
Module interface:
DC +: positive power supply (by relay voltage power supply) DC-: connect power negative
CH: Relay Module signal triggering end (high-level trigger effective)
