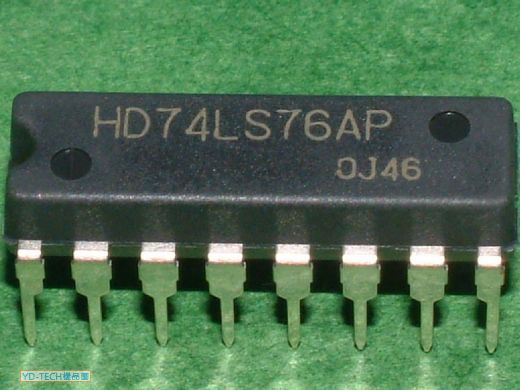

Name: 74LS76 IC JK Flip Flop Dual in Line (DIL)
SKU: 13336
Price: 230.00 PKR
Availability: OutOfStock

74LS76 is a dual in line (DIL) IC that contains two positive edge triggered (PET) JK flip flops. It is a member of the 74LS series of low-power Schottky (LS) logic ICs. The 74LS76 is available in a 14-pin DIL package.

74LS76 is a dual positive edge triggered JK flip-flop IC. It is a member of the 74LS series of low-power Schottky (LS) logic ICs.

7476 / 74LS76 comes with separate J, K, clock pulse, direct clear inputs, and direct set. These flip-flops are developed in such a way when the clock is set HIGH, data will be received enabling inputs.

These flip-flops are mainly employed in control registers, shift registers, and storage registers and are termed as latching devices due to their ability to remember every single bit of data.

The 74LS series of integrated circuits (ICs) was one of the most popular logic families of transistor-transistor logic (TTL) logic chips. 74LS series is a bipolar, low-power Schottky IC. The 74LS76 contains two independent J-K flip-flops with individual J-K, clock, preset, and clear inputs.

The 74LS76 is a positive-edge-triggered flip-flop. J-K input is loaded into the master while the clock is high and transferred to the slave on the high-to-low transition. For these devices, the J and K inputs must be stable while the clock is high.

74LS76 comes with dual JK flip flops. JK flip flops widely used in daily electronics devices by many methods but the basic operation of the JK flip flop is to store a bit. JK flip flop allows to store a bit and then allows it to use for further functions. in digital electronics circuits.

Features : –

The 74LS76 offers individual J, K, Clock Pulse, Direct Set and Direct Clear inputs. These dual flip-flops are designed so that when the clock goes HIGH, the inputs are enabled and data will be accepted. The Logic Level of the J and K inputs will perform according to the Truth Table as long as minimum set-up times are observed. Input data is transferred to the outputs on the HIGH-to-LOW clock transitions.

Here are some of the 74LS76’s features:

Dual JK flip-flops
Positive-edge-triggered
Low-power Schottky (LS) logic
14-pin DIL package
Operating voltage: 2V to 6V
Operating temperature: -55 to 125°C

74LS76 JK Flip Flop Specifications : –

74LS76 JK flip flop is one of the popular flip flops due to its clock input, pre-set, and clear functionalities. The JK flip-flop changes its state under the clock pulse signal. The clock signal can be either a positive edge or a negative edge. The clock pulse gives multiple advantages to the flip flop. 74LS76 also has provided a feature to neglect or prevent invalid outputs.

Here are some Specifications details about the 7476:

Operating voltage: 4.5 to 5.5 volts
Current consumption: 200 microamperes
Operating temperature range: -55 to 125 degrees Celsius
Package: 14-pin DIP

74LS76 JK Flip Flop Applications : –

TTL JK flip-flop 7476 is a digital logic IC that contains two positive edge triggered JK flip-flops. It is a member of the TTL (transistor-transistor logic) family of ICs.

74LS76 can use in a variety of applications, such as counters, shift registers, and data storage devices. The 74LS76 is a versatile and widely used IC that can use in a variety of applications.

Here are some of the 74LS76’s applications:

Counters
Shift registers
Data storage devices
Digital clocks
Logic gates
Programmable logic devices (PLDs)

The 74LS76 has four main inputs:

J: The J input controls the next state of the flip-flop. When J is high, the flip-flop will toggle its state.
K: The K input controls the next state of the flip-flop. When K is high, the flip-flop will go to the 1 state.
Clock: The clock input determines when the flip-flop will change its state. The flip-flop will change its state on the positive edge of the clock signal.
Reset: The reset input can use to reset the flip-flop to the 0 state.

The 74LS76 has two main outputs:
