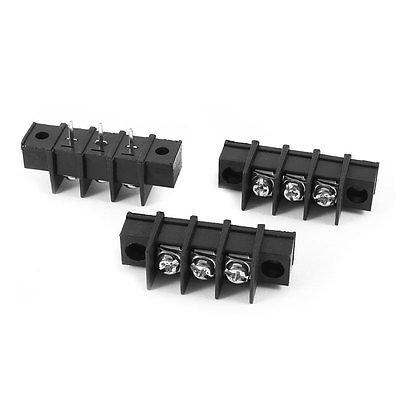

KF45, 3 PIN POWER CONNECTOR PCB MOUNT, 25A
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
9.5mm spacing barrier terminals with side expandable slot. The terminal accepts wire gauge of 22~12AWG. Connectors are available in black PA66 material.
₨ 18.00
Features:
- Voltage Rating: 300V.
- Current Rating: 25A.
- Wire Gauge: 22~12 AWG.
- Pin Spacing: 9.5mm.
- Number of Poles: 2~24 (Stackable)
- Housing Material: PA66UL94V-0.
- Solder Pin: Tinned Brass.
- Screw: M3 Steel Nickel plated.
- Mounting Type: PCB thru-hole.
- Rated impulse voltage: 2KV.
