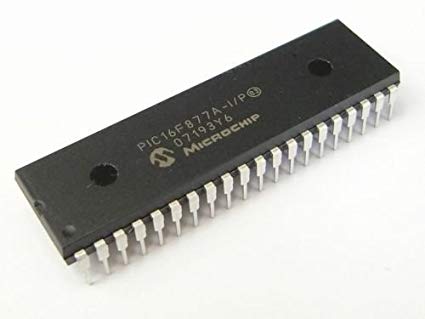

PIC16F877A, MICROCHIP MICROCONTROLLER IC, 6KB FLASH, 8-BIT

@ MODERN HALLROAD

The PIC16F877A-I/P is a 8-bit CMOS Flash-based Microcontroller. The PIC16F877A features 256 bytes of EEPROM data memory, self programming, an ICD, 2 comparators, 8 channels of 10-bit Analogue-to-digital (A/D) converter, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). The data EEPROM and flash program memory is readable and writable during normal operation (over the full VDD range). This memory is not directly mapped in the register file space.

 450.00

Out of stock

Category:

Features:

  • High-Performance RISC CPU
  • Only 35 single word instructions to learn
  • All instructions are single cycle (1µs) except for program branches
  • Operating speed: DC – 20MHz clock input
  • 8 kBytes Flash Program Memory
  • 368 Byte RAM Data Memory
  • 256 Byte EEPROM Data Memory
  •  In-circuit Serial Programming
  •  Interrupt Capability (up to 10 sources)
  • Two 8-bit timer/counter(TMR0, TMR2) with 8-bit programmable prescalar
  • One 16 bit timer/counter (TMR1)
  • High current source/sink for direct LED drive
  • Watchdog Timer (WDT) with Separate RC Oscillator
  • Two Capture, Compare, PWM Modules
  • Synchronous Serial Port with SPI and I²C
  • Eight Channel, 10-bit Analog to Digital Converter
  • Universal Synchronous Asynchronous Receiver Transmitter (USART)
  • 33 I/O pins with individual direction control
  • 40-pin DIP
