Name: PIC16F88 16F88 Microcontroller In Pakistan
SKU: 18069
Price: 1150.00 PKR
Availability: OutOfStock

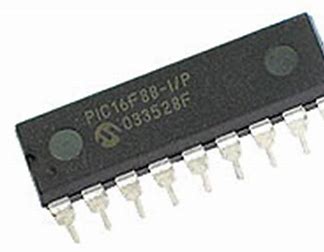

PIC16F88 16F88 is a 8-bit PIC microcontroller , introduced by microchip mainly used in automation and fixed / embedded in applications.

PIC16F88-I/P 16F88 comes with a gave greater value to flash processor and nanowatt technology, helping it to use up minimum power with the power to act a number of functions on a single very small chip.

An ADC 10-bit part of a greater unit is added in the apparatus that makes it able to exist together with other apparatuses and takes analog signal and converts it to a digital one.

PIC16F88 16F88 Microcontroller is part of a greater unit houses little/less memory space as made a comparison of to other controllers in the picture community and comes with a 18-pin general design PDIP Though other parts of a greater unit with more number of pins are also available , PDIP is mostly used for undergoing growth individual learner projects.

PIC16F88 IP range of microcontrollers from microchip are 8-bit MCUs that make into company microchip pic buildings and structure design into a variety of pin and process of parceling selections, from space good at producing an effect of 14-pin apparatuses to feature-rich 64-pin apparatuses. apparatuses with baseline, middle-of-range or gave greater value to middle-of-range buildings.

IC PIC16F88 Microcontroller structure design are available with great number of different peripheral combinations, giving designers able to make ready adjustments and selection for their applications.

These MCUs make ready up to 5 MIPS, 7 Kbytes program memory, 368 bytes male sheep and 256 bytes eeprom On board is a configurable oscillator.

Features: –

Power-Managed modes: – Primary Run: RC oscillator, 76 µA, 1 MHz, 2V – RC_RUN: 7 µA, 31.25 kHz, 2V – SEC_RUN: 9 µA, 32 kHz, 2V – Sleep: 0.1 µA, 2V
Timer1 Oscillator: 1.8 µA, 32 kHz, 2V
Watchdog Timer: 2.2 µA, 2V
Two-Speed Oscillator Start-up
Three Crystal modes: – LP, XT, HS: up to 20 MHz
Two External RC modes
One External Clock mode: – ECIO: up to 20 MHz
Internal oscillator block: – 8 user selectable frequencies: 31 kHz, 125 kHz, 250 kHz, 500 kHz, 1 MHz, 2 MHz, 4 MHz, 8 MHz

PIC16F88 16F88 Microcontroller Specifications: –

Capture, Compare, PWM (CCP) module: – Capture is 16-bit, max. resolution is 12.5 ns – Compare is 16-bit, max. resolution is 200 ns – PWM max. resolution is 10-bit
10-bit, 7-channel Analog-to-Digital Converter
Synchronous Serial Port (SSP) with SPI™ (Master/Slave) and I2C™ (Slave)
Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART/SCI) with 9-bit address detection: – RS-232 operation using internal oscillator (no external crystal required)
Programmable on-chip voltage reference – Programmable input multiplexing from device inputs and internal voltage reference – Comparator outputs are externally accessible.
