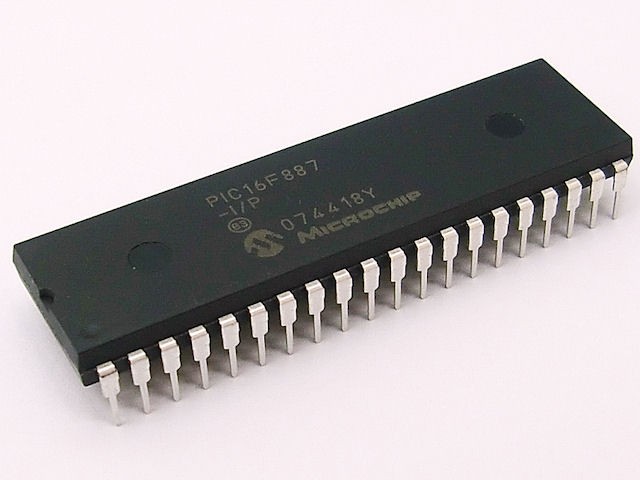

Microchip PIC16F887 8-Bit Microcontroller 40 PIN DIP

Microchip PIC16F887 is an 8-bit microcontroller base on the PIC® architecture from Microchip Technology. PIC16F887 Microcontroller is a popular choice for a variety of applications, including motor control, LED and LCD display control, data acquisition, communication, and real-time control.

The PIC16F887 is a powerful and versatile microcontroller that can use in a wide range of applications. PIC16F887 IP is a popular choice for hobbyists and engineers alike, and it is a great option for anyone looking for an affordable and easy-to-use microcontroller.

The operating voltage of the PIC16F887 microcontroller is 2.0V to 5.5V. The operating voltage of a microcontroller is important because it determines the maximum speed at which the microcontroller can operate. The higher the operating voltage, the faster the microcontroller can operate. However, the operating voltage must also be within the specified range, or the microcontroller may not operate correctly.

The PIC16F887 microcontroller works on the principle of the Harvard architecture. This means that the program memory and data memory are separate from each other. The program memory is use to store the instructions that the microcontroller executes, and the data memory is use to store the data that the microcontroller processes.

The PIC16F887 has an 8-bit instruction set. This means that each instruction is 8 bits long. The instructions are store in the program memory in sequence. When the microcontroller is power on, it starts executing the instructions from the beginning of the program memory.

The data memory is use to store the data that the microcontroller processes. The data memory is divided into two banks: Bank 0 and Bank 1. The microcontroller can access either bank at any time.

The PIC16F887 has a number of registers that are use to store data and control the operation of the microcontroller.

Salient Features : –

The PIC16F887 Microcontroller is a relatively inexpensive microcontroller. The PIC16F887 can program using a variety of tools, including the MPLAB IDE and the MPLAB X IDE. The MPLAB IDE is a free integrated development environment (IDE) from Microchip that can use to program PIC microcontrollers. The MPLAB X IDE is a commercial IDE from Microchip that offers more features than the MPLAB IDE. The PIC16F887 microcontroller has a number of benefits, including:

• Low cost
• Easy to program
• Wide range of features
• Wide availability
• Strong support community

Microchip PIC16F887 Specifications : –

The PIC16F887 IP is an 8-bit CMOS microcontroller with 40 pins in a DIP. The PIC16F887 Microcontroller is a powerful and versatile microcontroller that can use in a wide range of applications. It is a popular choice for hobbyists and engineers alike, and it is a great option for anyone looking for an affordable and easy-to-use microcontroller. here are the specifications of the PIC16F887 microcontroller:

• Operating voltage: 2.0V to 5.5V
• Instruction set: 8-bit
• Flash memory: 8K bytes
• EEPROM: 256 bytes
• RAM: 368 bytes
• Analog-to-Digital converter (ADC): 14 channels, 10-bit
• Comparators: 2
• Capture/compare/PWM: 1
• Serial port: 1 synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus
• Enhanced Universal Asynchronous Receiver Transmitter (EUSART): 1
• Self-programming capability: Yes
• In-circuit debugging (ICD): Yes
• Clock frequency: Up to 20 MHz
• Timers: 2 timers, 8-bit and 16-bit
• Interrupts: 23 interrupts
• GPIO: 32 general-purpose I/O pins
• Power consumption: 100 microamps (active) to 1 microamp (sleep)

Microchip PIC16F887 Applications : –

The PIC16F887 is a versatile and powerful microcontroller that can use in a wide range of applications. PIC16F887 Microcontroller is easy to program and use, and it is available in a variety of packages to meet the needs of different applications. The PIC16F887 is a popular microcontroller for a variety of applications, including:

• Motor control
• LED and LCD display control
• Data acquisition
• Communication (RS-232, RS-485, SPI, I²C)
• Real-time control
• Programmable logic

Package : –

1 x Microchip PIC16F887
