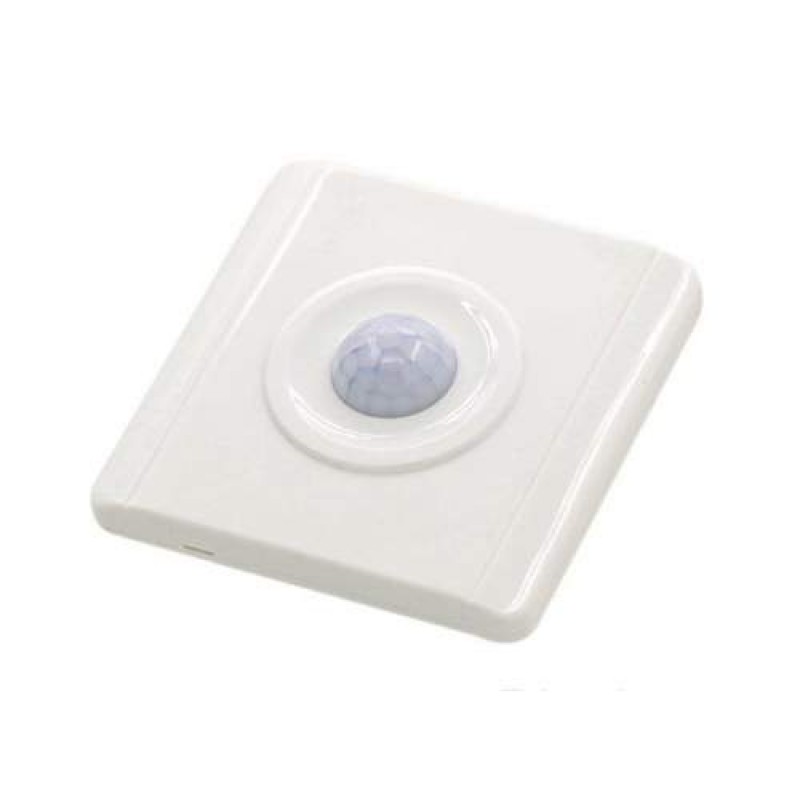

PIR Human Body Motion Sensor IR Switch for Auto On/Off

Sold by
sherjaan
@ sherjaan

This PIR Human Body Motion Sensor IR light switch adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically. when they leave light will delay and shut down automatically. During the day, the built in Photocell Sensor saves electricity by deactivating the lights. You can reduce your electricity bills by using PIR Human Body Motion Sensor & Occupancy Sensors.

 1,800.00

Out of stock

Categories: ,

This PIR Human Body Motion Sensor IR light switch adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically.

when they leave light will delay and shut down automatically. During the day, the built in Photocell Sensor saves electricity by deactivating the lights.

You can reduce your electricity bills by using PIR Human Body Motion Sensor & Occupancy Sensors.

PIR Human Body Motion Sensor is a great way of saving energy shortfall period. A PIR sensor light switch will automatically detect when someone enters the room or any place where the motion sensor is set.

Then, after a few minutes(adjusted by your desires) where no movement has been detected, the lights will then automatically turned off.

Although a motion sensor switch is indeed a big and important invention. In fact, you can install a motion sensor light switch much in the same way as you would a single pole light switch.

It has been estimated that a single unit of energy saved at the end use point is equal to 2.3 units of energy produced.

The PIR Motion Sensor Switch can detect the Infrared Rays released by human body. The light or any other electrical appliance can be activated automatically by the active presence of a human body within the detection range / coverage area & when there is no presence the light will be deactivated automatically.

PIR Human Body Motion Sensor is a fully automatic indoor and outdoor security / courtesy light controller capable of controlling up to 2000W incandescent or 30W x 20 fluorescent of lighting in day as well as at night.

The built–in Passive Infrared (PIR) Motion Sensor turns on the connected lighting system when it detects motion in its coverage area.

Features: –

  • Super saving electricity, power consumption 0.08 degrees per year
  • Wide working voltage, normally working in 100V-250V
  • Filament lamp impedance load should lower than 100W, LED energy saving lamps impedance load should lower than 60W.
  • Non-contact, simple installation single wire system, just like ordinary switch connection
  • Sensitivity can’t adjustable
  • Lightning protection, strong anti-jamming capacity, more safe and reliable
  • Working Power: AC85V~250V, 50/60HZ
  • Load Power: LED 40W, Energy Saving 60W, Incandescent 100W, Fan 50W
  • Sensor Distance: 5-8m
  • Sensor Angle: 110~140degree

PIR Human Body Motion Sensor Specifications: –

  • Working Power: AC 100V~250V, 50/60HZ
  • Load Power: LED ≤ 40W , Energy Saving≤60W, Incandescent ≤ 100W, Fan ≤ 50W
  • Standby power 0.0088W
  • Illumination: 5LUX~5000LUX
  • Sensor Distance: 6~10m
  • Sensor Angle: 110~140 degree

PIR Human Body Motion Sensor Applications: –

  • Common toilets, for lights & exhaust fans
  • Common staircase / Entrance / Basements
  • Parking areas / garden lights
  • Living room, Malls, ATMS
  • Changing rooms in shops
  • Offices / Conference Room
  • Corridors & many more!
Package: –

1 x PIR Human Body Motion Sensor IR Switch for Auto On/Off
