RCWL-0516 Microwave Doppler Radar Sensor

The RCWL-0516 is a microwave radar sensor that uses Doppler technology to detect the motion of nearby objects. RCWL-0516 Microwave Radar Sensor is a small, low-cost sensor that can use in a variety of applications, such as security systems, automatic lights, and robotics. This RCWL-0516 is a Doppler radar microwave motion sensor module that can use as an alternative to a PIR motion sensor.

The RCWL-0516 works by emitting a beam of microwaves at a frequency of 3.18 GHz. When an object moves through the beam, the frequency of the reflected microwaves is Doppler-shifted. This change in frequency is detected by the sensor, which then outputs a signal indicating that motion has been detected.

RCWL-0516 has a sensitivity range of up to 7 meters and can detect objects that are moving at a speed of up to 2 m/s. The sensor also has a built-in delay time, which can adjust to prevent false alarms.

RCWL-0516 Microwave Radar Sensor has a wide operating voltage range of 4 to 28 volts. This means that it can power by a variety of sources, such as a battery, a DC adapter, or the output of a microcontroller. The sensor draws a current of about 3 milliamps, so it is very energy efficient.

The forward side of the RCWL-0516 is the side with the components. This side should face the objects being detected. Do not obstruct the forward side with anything metallic, as this can interfere with the sensor’s operation. The back side of the sensor should have a clearance of more than 1 cm from any metal. This is to prevent the metal from reflecting the microwaves and causing false alarms.

Features : –

The RCWL-0516 Doppler Radar Sensor uses the RCWL-9196 transmission signal processing control chip. The RCWL-9196 is a low-power, high-performance chip that is design for use in Doppler radar sensors. The chip has a number of features that make it well-suited for this application. A mixer that can mix the transmitted signal with the reflected signal to produce a Doppler-shifted signal & A low-pass filter that can filter out the high-frequency components of the Doppler-shifted signal. The RCWL-0516 Doppler Radar Sensor has a number of benefits, including:

• Low-cost: The RCWL-0516 Doppler Radar Sensor is relatively inexpensive, making it a cost-effective option for a variety of applications.
• Easy to use: The RCWL-0516 Doppler Radar Sensor is easy to interface with microcontrollers and other electronic devices, making it a good option for DIY projects.
• Wide detection range: The RCWL-0516 Doppler Radar Sensor has a wide detection range of up to 7 meters, making it suitable for a variety of applications.
• Can detect moving objects at speeds up to 2 m/s: The RCWL-0516 Doppler Radar Sensor can detect moving objects at speeds up to 2 m/s, making it a good option for applications where speed is important.
• Built-in delay time: The RCWL-0516 Doppler Radar Sensor has a built-in delay time, which can be adjusted to prevent false alarms.
• 360° detection angle: The RCWL-0516 Doppler Radar Sensor has a 360° detection angle, making it a good option for applications where it is important to detect motion from all directions.
• Wide operating voltage range: The RCWL-0516 Doppler Radar Sensor has a wide operating voltage range of 4 to 28 volts, making it suitable for a variety of applications.

RCWL-0516 Microwave Doppler Radar Sensor Specifications : –

The RCWL-0516 sensor uses Doppler radar technology to detect motion, while the traditional PIR sensor uses passive infrared technology. This means that the RCWL-0516 sensor can detect motion through walls and other objects, while the traditional PIR sensor can only detect motion that is in the direct line of sight.

The RCWL-0516 sensor also has a wider detection angle than the traditional PIR sensor. The RCWL-0516 sensor can detect motion up to 360 degrees, while the traditional PIR sensor can only detect motion in a 120-degree arc. Here are some of the specifications of the RCWL-0516 sensor:

• Operating voltage: 4 to 28 volts
• Input current: 3 milliamps
• Operating frequency: 3.18 GHz
• Sensitivity range: 5 to 7 meters
• Detection angle: 360°
• Built-in delay time: 2 to 3 seconds
• Output signal: Digital, 3.3 volts

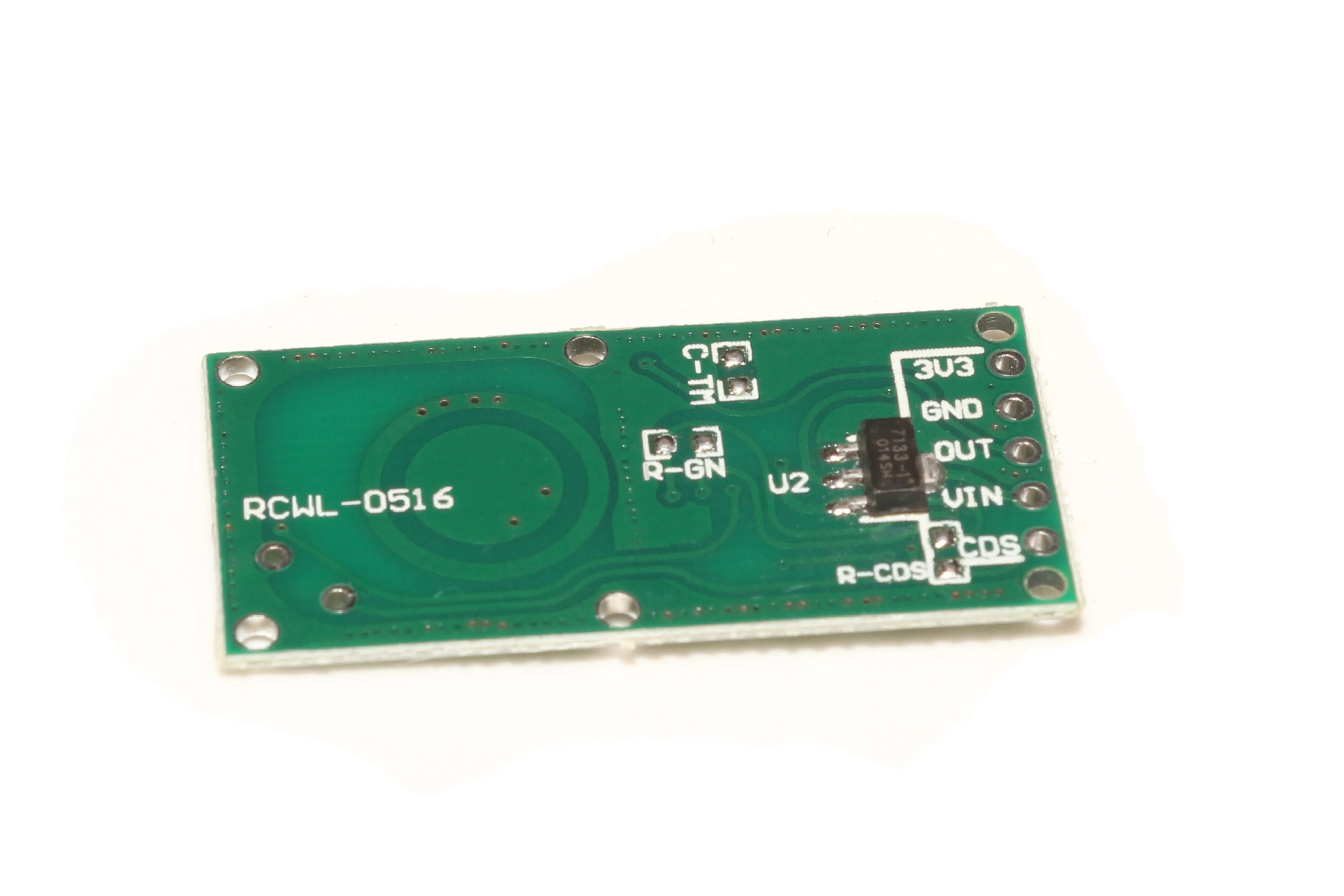

RCWL-0516 Microwave Doppler Radar Sensor Pin Descriptions : –

RCWL-0516 Radar Sensor has a built-in delay time and a distance adjustable feature. The delay time is the amount of time that the sensor will wait after detecting motion before it can detect motion again. This is to prevent the sensor from being triggered by noise or other false alarms. The delay time can adjust from 2 to 3 seconds.

The distance adjustable feature allows you to adjust the sensitivity of the sensor. This means that you can set the sensor to detect objects that are closer or further away. The distance adjustable feature  controlled by a resistor that connected to the CDS pin. The value of the resistor determines the sensitivity of the sensor. The RCWL-0516 Radar Sensor has 4 pins:

• VIN: This pin is the power input for the sensor. It can connect to a voltage source of 4 to 28 volts.
• GND: This pin is the ground connection for the sensor.
• OUT: This pin is the output signal from the sensor. It is a digital signal that goes HIGH when motion detected and LOW when no motion detected.
• CDS: This pin is the connection for the light dependent resistor (LDR). The LDR is use to adjust the sensitivity of the sensor.

RCWL-0516 Microwave Doppler Radar Sensor Applications : –

The RCWL-0516 Microwave Radar Sensor is compatible with the Arduino Uno. The sensor has a digital output, which means that it can easily interface with the Arduino Uno’s digital pins. The RCWL-0516 Doppler Radar Sensor is a versatile sensor that can use in a variety of applications. Here are some of the most common applications for the RCWL-0516 sensor:

• Security systems: The RCWL-0516 sensor can use in security systems to detect motion and trigger an alarm.
• Automatic lights: The RCWL-0516 sensor can use to automatically turn on lights when motion is detected.
• Pet detection: The RCWL-0516 sensor can use to detect pets and trigger an event, such as opening a door or turning on a light.
• Human detection: The RCWL-0516 sensor can use to detect humans and trigger an event, such as turning on a camera or opening a door.
• Robotics: The RCWL-0516 sensor can use in robotics to detect obstacles and navigate around them.
• Industrial automation: The RCWL-0516 sensor can use in industrial automation to detect objects and control machines.

The RCWL-0516 sensor is a low-cost, easy-to-use sensor that can use in a variety of applications. It is a good option for applications where accuracy and reliability are not the highest priority.

Package : –

1 x RCWL-0516 Microwave Doppler Radar Sensor
