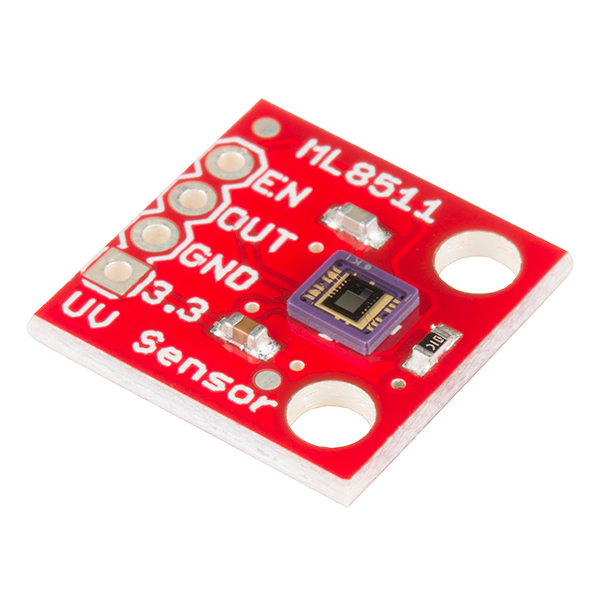

SparkFun Ultraviolet UV Sensor Breakout – ML8511

The SparkFun Ultraviolet UV Sensor Breakout – ML8511 is simple to utilize bright light sensor. The MP8511 UV (bright) Sensor works by outputting an analog signal in connection to the measure of UV light that is distinguished. This SparkFun Ultraviolet UV Sensor Breakout – ML8511 can be exceptionally helpful in making gadgets that caution the client of sunburn or recognize the UV list as it identifies with climate conditions.

This sensor recognizes 280-390nm light generally adequately. This is classified as a component of the UVB (copying beams) range and the majority of the UVA (tanning beams) range. It yields an analog voltage that is straightly identified with the deliberate UV force (mW/cm2). On the off chance that your microcontroller can complete analog to digital signals transformation, you can identify the dimension of UV!

ML8511 UVB Ultraviolet Detection UV Sensor Breakout – ML8511 UVB Ray Detection Module Ray Detection Module.

The SparkFun Ultraviolet UV Sensor Breakout – ML8511 is an easy to use ultraviolet light sensor. The MP8511 Sensor works by out put an analog signal in relation to the amount of UV light that’s detected. This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions.

This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs a analog voltage that is linearly related to the measured UV intensity (mW/cm2). If your microcontroller can do an analog to digital signal conversion then you can detect the level of UV!

Features: –

• Photodiode sensitive to UV-A and UV-B
• Embedded operational amplifier
• Analog voltage output
• Low supply current (300uA typ.) and low standby current (0.1uA typ.)

SparkFun Ultraviolet UV Sensor Breakout – ML8511 Specifications: –

• Model No: GY-ML8511
• Operating voltage (VCC): 3 V to 5V
• Operating current: 120uA (typ) 190uA (max)
• Interface Type: Analog (0- 3.3V)
• Operating Temperature: -40°C ~ 85°C
• Detection Wavelength Band: 280nm-390nm
• Peak wavelength: 365nm
• PCB size: 13.3 mm x 11.6 mm
• Weight : 1.0g (including header)

Pin Description: –

• VIN : Power Connection (3V – 5V)
• 3.3V : Output of the on board regulator
• GND: 0V
• OUT: Analog Output
• EN: Enable Input

Applications: –

• Sunburn detectors
• Controlled UV Exposure chambers
• UV Detectors for the safety of Humans, and animals

Related Documents: –

• Schematic
• Eagle Files
• Datasheet
• Hookup Guide
• GitHub (Design Files & Example Code)
• Product Video

Package: –

1 x SparkFun Ultraviolet UV Sensor Breakout – ML8511
