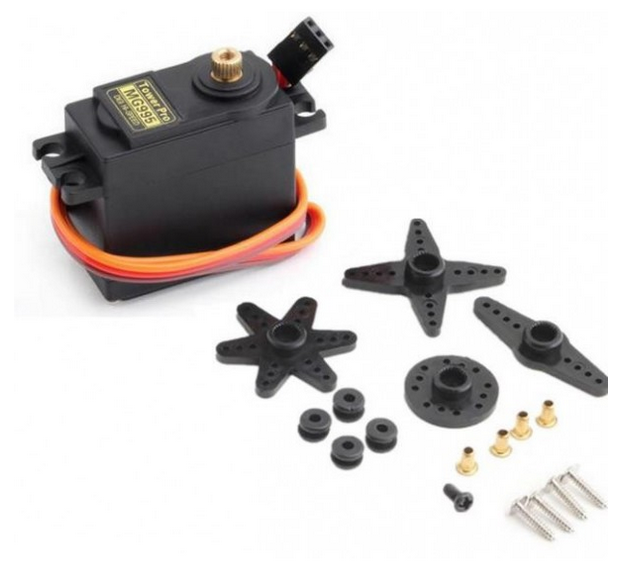

Name: Tower Pro MG995 Metal Gear Servo Motor 11kg Torque
SKU: 18093
Price: 750.00 PKR
Availability: InStock

The Tower Pro MG995 is a popular high-torque servo motor that is commonly use in radio-controlled (RC) vehicles, robots, and other projects. MG995 Metal Gear Servo Motor has a metal gear train, which makes it stronger and more durable than servos with plastic gears. The MG995 can also rotate 360 degrees ( 180 Degree each side ), which makes it versatile for a wide range of applications.

This is the most famous servo made by Tower Pro. MG995 is a digital metal gear high torque servo for airplane, helicopter, RC-cars from 10 to 6-th scale truggy and monster and many RC model. The Servo Mg995 is relatively easy to use and can control by a variety of microcontrollers, such as the Arduino and Raspberry Pi.

The servo motor MG995 has a stall torque of 11kg-cm at 6V. The Mg995 Metal Gear Servo Motor has a metal gear train, which makes it stronger and more durable than servos with plastic gears. It can also rotate 180 degrees, which makes it versatile for a wide range of applications.

The Tower Pro MG995 can draw up to 2A at stall. The Tower Pro MG995 servo motor has an operating voltage range of 4.8V to 7.2V. This means that it can power by a variety of power sources.

The MG995 servo motor works by using a pulse width modulation (PWM) signal to control the position of the servo arm. The PWM signal is a series of pulses that are sent to the servo motor at a regular frequency. The width of each pulse determines the position of the servo arm.

The Servo Motor MG995 is a relatively small and lightweight servo motor, making it suitable for a variety of applications. MG995 Servo Motor is also relatively affordable, making it a good choice for budget-minded projects.

Features : –

The Tower Pro MG995 RC Servo Motor is a popular and versatile servo motor that is commonly use in robotics, RC vehicles, and other projects. Metal Gear Servo Motor MG995 is known for its high torque, durability, and affordability.

The dimensions of the MG995 servo motor are:

Length: 40.7mm
Width: 19.7mm
Height: 42.9mm

The servo motor also has four mounting holes, which are spaced 27.0mm apart on the length axis and 16.0mm apart on the width axis. The Tower Pro MG995 servo motor is a popular choice for a variety of projects due to its many advantages, including:

High torque
Durability
Versatility
Affordability
Double ball bearings
PWM control
Analog feedback

Tower Pro MG995 Specifications : –

The Tower Pro MG995 Metal Gear Servo Motor is a versatile and reliable servo motor that is a good choice for a variety of projects. The MG995 motor features a metal gear train and double ball bearings, making it a durable and reliable servo motor that can withstand the rigors of everyday use.

Tower pro Mg995 Metal Gear Servo Motor has a stall torque of 11kg-cm at 6V, making it a powerful servo motor that can use to move heavy loads. Tower Pro MG995 Digi Hi Speed is beneficial for applications such as robotic arms, grippers, and RC vehicles. The Tower Pro MG995 servo motor has the following specifications:

Operating voltage: 4.8V to 7.2V
Stall torque: 11kg-cm (at 6V)
Rotation speed: 0.16 seconds/60 degrees at 6V
Rotation angle: 180 degrees
Gear train: Metal
Connector type: JR
Weight: 55g

Tower Pro MG995 Pin Descriptions : –

The Servo Motor MG995 is a relatively affordable servo motor, making it a good value for the price. The MG995 servo motor can use for a variety of applications, including RC vehicles, robots, robotic arms, grippers, animatronics, and other projects. This makes it a good choice for makers and hobbyists who are working on a variety of different projects.

The Tower Pro MG995 servo motor has three pins:

VCC: This pin is for the positive power supply.
GND: This pin is for the ground connection.
SIGNAL: This pin is for the PWM control signal.

The MG995 servo motor has a three-wire connector: power, ground, and signal. The power and ground wires are use to power the servo motor. The signal wire is use to send the PWM signal to the servo motor.

The VCC and GND pins should connect to the appropriate power and ground pins on your microcontroller. The SIGNAL pin should connect to a digital output pin on your microcontroller.

Tower Pro MG995 Applications : –

The MG995 servo motor has an operating voltage range of 4.8V to 7.2V. It is important to note that the voltage of the power supply can affect the performance of the servo motor.

The MG995 servo motor is a popular choice for a variety of projects due to its high torque, durability, versatility, and affordability. Tower Pro Mg995 Servo Motor is commonly use in RC vehicles, robots, robotic arms, grippers, animatronics, and other projects. The MG995 is a good choice for a variety of projects, including:
