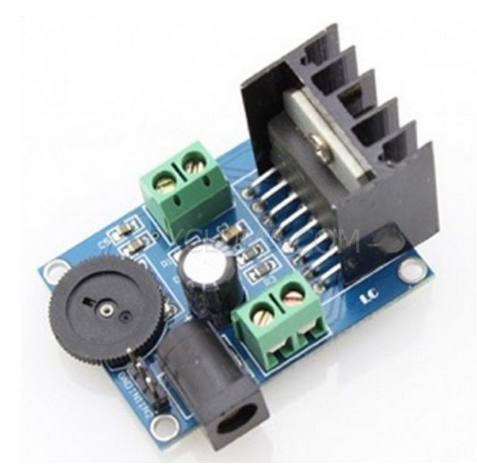

TDA7297 Amplifier Board kit dual-channel 15w 12-18V

The TDA7297 Amplifier Board kit dual-channel 15w digital audio amplifier specially designed for TV and Portable Radio applications. The max output power of it up to 15W+15W. It is a good audio amplifier for your DIY speaker project.

TDA7297 amplifier board, with the terminal, 2.0 dual-channel 15W +15 W, 4-8 European 10-50W speaker can be connected, a large volume of small stature, a wide range of applications.

Build your own music system with TDA7297 Amplifier Board kit is a newly designed digital audio amplifier board with fine quality is practical to install and use also has good performance. It features a high-efficiency class D audio power amplifier with the latest and original TDA7297 core technology the BTL bridge circuit is more efficient than before.

The TDA7279 is a 15W + 15W Stereo dual bridge Amplifier. It is 15 Pin class AB type amplifiers and has an operating voltage from 6V to 18V. It is typically operated at 12V in portable battery powered audio applications.

This product uses the double power supply transformer with a dynamic power supply range from 6V to 18V with high efficiency small quiescent current. Additionally, it is equipped with Perfect protection functions like overvoltage protection and output current limit.

• Working Voltage: 6-18V DC
• The onboard TDA7297 audio power amplifier chip, double channel 15WX15W
• Speaker for European 4-8 10-50W use
• Main pin has led chip, convenient external control device, the onboard
• 5.08 (mm) distance between two p terminal 2 road, around a track connection output respectively
• The onboard dial potentiometer, output size can adjust the volume
• Support DC, terminal blocks, row needles 3 power input mode, the default

TDA7297 Amplifier Board kit Specifications: –

• Dual channel Class AB Amplifier
• 15W + 15W Stereo Output
• Operating Voltage: 6V to 18V
• Peak Output Current: 2A
• In-built mute and stand-by function
• Maximum Quiescent current: 65mA
• Closed Loop Voltage gain: 33dB

TDA7297 Amplifier Board kit Applications: –

• Used for Audio signal Amplification
• Suitable for medium power amplification
• Capable of operating on dual/split power supply
• Stereo audio application

Datasheet: –

st.com/resource/en/datasheet/tda7297.pdf

Package: –

1 x TDA7297 Amplifier Board kit
