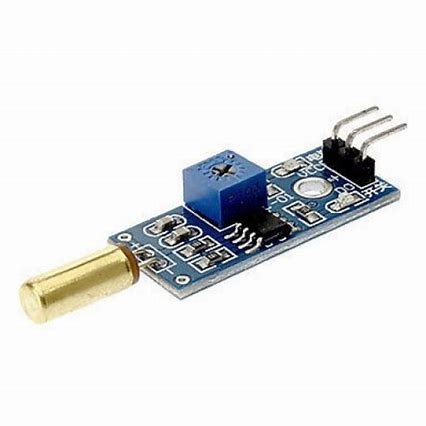

SW520D Tilt Sensor Tilt Angle Switch sensor Module for Arduino

Sold by
sherjaan
@ sherjaan

SW520D Tilt Sensor , or Tilt Angle Switch sensor Module, is a module used for measuring the tilt of an object in multiple axes with reference to an absolute level plane.

 180.00

In stock

SW520D Tilt Sensor , or Tilt Angle Switch sensor Module, is a module used for measuring the tilt of an object in multiple axes with reference to an absolute level plane.

The SW520D Tilt Sensor is a component that can detect the tilting of an object. However it is only the equivalent to a pushbutton activated through a different physical mechanism.

This type of sensor is the environmental-friendly version of a mercury-switch. It contains a metallic ball inside that will commute the two pins of the device from on to off and vice versa if the sensor reaches a certain angle.

The tilt sensor module is equipped with a tilt sensor and a potentiometer. You may attach it to any object and it will determine whether the object is tilted or not. It is simple as it returns a digital output. It uses SW-460D or SW520D tilt sensor. This tilt sensor is a ball rolling type, NOT the Mercury type.

It comes with a M3 mounting hole for ease of attaching it to any object. A power LED and a status LED attached to the module for visual indicator.

This module will output logic LOW when the sensor is tilted below the threshold angle; logic HIGH when it is tilted above the threshold angle.

The threshold angle ranges from 45 degree to 130 degree. Aside from threshold angle, angular velocity also affect the tilt module. It can also be used as a vibration sensor, too!

This SW520D Tilt Sensor module can be interfaced with any microcontroller with digital input such as PIC, SK40C, SK28A, Skds40A, Arduino series for tilt detection capability.

Also, not to forget, interfacing the module with a Relay module forms a tilt switch.

Features: –

  • Operating voltage: 3.3 to 5VDC
  • Ball Rolling type of tilt sensor.
  • PIN: VCC = 5V, GND = 0V, DO = digital output from module
  • AO is not use in this module.

SW520D Tilt Sensor Specifications: –

  • Using high-sensitivity switch SW 520D as the sensor.
  • The module is equipped with fixed bolt hole for convenient installation.
  • Using LM393 wide voltage comparator, clean signal, good waveform, strong driving ability with output of more than 15 mA.
  • The working voltage of 3.3V to 5V.
  • Small PCB size:3.2cm x 1.4cm.
  • Digital output form: digital switch output (0 and 1).

Applications: –

  • Security systems.
  • Digital cameras
  • Toys
  • Motors
  • Robotic arms
  • Vending machines.
  • Measuring instruments.
  • Hobby projects.
Ping Configuration : –

TILT SENSOR MODULE is three pin devices as shown in figure. All three pins are compulsory for using the module.

Pin Name

Description

GND

Connected to GROUND

VCC

Connected to +5V

DO

Output of TILT SENSOR

Package: –

1 x SW520D Tilt Sensor

Datasheet:
energiazero.org/…i/tilt_sensor_module.pdf
