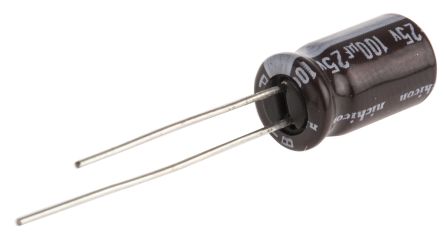

100uf 25v Aluminum Electrolytic Polar Capacitor

@ MODERN HALLROAD

100UF 25V Capacitor is polarized electrolytic capacitors whose anode electrode (+) is made of a pure aluminum foil with an etched surface.

 10.00

In stock

SKU: R7C3-8 Category:

100UF 25V Capacitor is polarized electrolytic capacitors whose anode electrode (+) is made of a pure aluminum foil with an etched surface.

The aluminum forms a very thin insulating layer of aluminum oxide by anodization that acts as the dielectric of the capacitor.

A non-solid electrolyte covers the rough surface of the oxide layer, serving in principle as the second electrode (cathode) (-) of the capacitor.

100μF 25V Electrolytic Capacitor is ideal for low frequency signals, to reduce the effects of ripples, surges as well as sudden drops in current.

A second aluminum foil called “cathode foil” contacts the electrolyte and serves as the electrical connection to the negative terminal of the capacitor.

These capacitors are frequently used for low frequency filtering, providing power supply bulk capacitance, charge pumps, energy storage and similar applications where you need a lot of capacitance.

These are the latest technology miniature variety with radial leads to keep the size of the component as compact as possible to take up minimum board space. Outer construction is aluminum.

Features : –

  • High Quality Electrolytic Capacitors
  • Low Leakage Current
  • Long Life
  • Accuracy: ±20%
  • Wide Operating Temperature Range: -40°C to +85°C

100uf 25v Aluminum Electrolytic Polar Capacitor Specifications : –

  • Capacitance: 100µF
  • Rated Voltage: 25.0V
  • Diameter: 6.3mm
  • Tolerance: ±20%
  • Lead Spacing: 2.5mm
  • Height (above board): 11.2mm

100uf 25v Aluminum Electrolytic Polar Capacitor Applications : –

  • Used in filter circuits like High/Low pass filter etc.
  • Used in Resonant Circuits
  • To remove noise from a circuit
  • Used in DC-DC converters and Power supply circuits
  • To Smoothen ripples in converters
  • Fading LED circuits
Package : –

1 x 100uf 25v Aluminum Electrolytic Polar Capacitor
