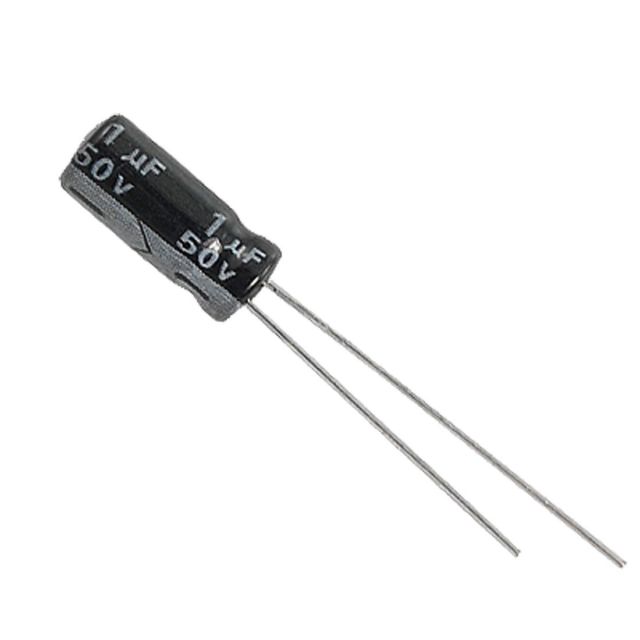

1uf 50v Capacitor Aluminum Electrolytic Polar Capacitor

1uF 50V Capacitor is polarized electrolytic capacitors whose anode electrode (+) is made of a pure aluminum foil with an etched surface.

The aluminum forms a very thin insulating layer of aluminum oxide by anodization that acts as the dielectric of the capacitor.

1uF 50V capacitor is a good quality radial polarized Electrolytic capacitor. Electrolytic capacitors are widely used in switched-mode power supplies, DC-DC converters, and power supplies. This capacitor has a long life, low leakage current, and wide operating range.

A non-solid electrolyte covers the rough surface of the oxide layer, serving in principle as the second electrode (cathode) (-) of the capacitor.

1uF 50V capacitor is a good quality radial polarized Electrolytic capacitor. Electrolytic capacitors are widely used in switched-mode power supplies, DC-DC converters, and power supplies. This capacitor has a long life, low leakage current, and wide operating range.

A second aluminum foil called “cathode foil” contacts the electrolyte and serves as the electrical connection to the negative terminal of the capacitor.

These are probably the most recognizable types of capacitors. They come in distinctive metal cans with a plastic sheath, with clearly stated voltage and capacitance ratings and a white band to indicate the cathode.

Features : –

• High Quality Electrolytic Capacitors
• Low Leakage Current
• Long Life
• Accuracy: ±20%
• Wide Operating Temperature Range: -40°C to +85°C
• Dimensions : Body Height – 11mm, Body Diameter – 5mm
• Pin Spacing: 2mm

1uf 50v Capacitor Specifications : –

• Product Name : Aluminum Electrolytic Capacitor

• Type : Radial Lead

• Maximum Temperature : 105C

• Voltage : 50V

• Capacitance : 1uF

• Capacitance Tolerance : 20%

• Size : 5 x 11mm / 0.2″ x 0.43″ (D*L)

• Lead Spacing : 2mm

• Lead Length : 19mm, 24mm

• External Material : Aluminum;
• Weight : 5g

1uf 50v Capacitor Applications : –

• Standard General Purpose.

• Aluminum electrolytic capacitor with radial lead.

• Polarized, the longer lead is positive electrode while the shorter one is negative electrode.

• Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.

Package : –

1 x 1uf 50v Capacitor Aluminum Electrolytic Polar Capacitor
