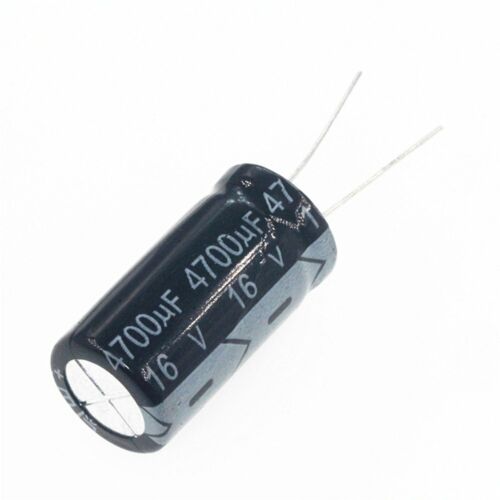

16V 4700uf Capacitor Aluminum Electrolytic Polar Capacitor

Sold by
sherjaan
@ sherjaan

16V 4700uf Capacitor is polarized electrolytic capacitors whose anode electrode (+) is made of a pure aluminum foil with an etched surface.

 50.00

In stock

SKU: R7C3-2 Category:

16V 4700uf Capacitor is a high quality electrolytic capacitor which offers long life and high reliability. Electrolytic Capacitors are most commonly used type of capacitors in Electronic Circuits. Electrolytic Capacitors have 2 Polars – Positive and Negative.

4700uf 16v Aluminum Electrolytic Capacitor is polarized electrolytic capacitors whose anode electrode (+) is made of a pure aluminum foil with an etched surface.

The aluminum forms a very thin insulating layer of aluminum oxide by anodization that acts as the dielectric of the capacitor. A non-solid electrolyte covers the rough surface of the oxide layer, serving in principle as the second electrode (cathode) (-) of the capacitor.

A second aluminum foil called “cathode foil” contacts the electrolyte and serves as the electrical connection to the negative terminal of the capacitor.

16V 4700uf Electrolytic Capacitor is a high quality electrolytic capacitor which offers long life and high reliability. Electrolytic Capacitors are most commonly used type of capacitors in electronic circuits.

16V 4700uf Capacitor low impedance electrolytic capacitors featuring a long lifespan, suitable for use in switching power supplies and other high frequency applications.

This gives them very many uses in circuits where high currents or low frequencies are involved. Electrolytic capacitors are typically used most in applications such as audio amplifiers of all types (hi-fi to mobile phones) and in power supply circuits.

Electrolytic capacitors are used in huge quantities, They are able to provide a larger capacitance per volume than other types of capacitor.

Features : –

  • High Quality Electrolytic Capacitors
  • Low Leakage Current
  • Long Life
  • Accuracy: ±20%
  • Wide Operating Temperature Range: -40°C to +85°C
  • Dimensions : Body Height – 11mm, Body Diameter – 5mm
  • Pin Spacing: 7.5mm

16V 4700uf Capacitor Specifications : –

  • Capacitance (uF): 4700
  • Amps: 1.49
  • Voltage: 16
  • Ohms: .078
  • Tolerance (%): 20
  • Mounting: Through Hole
  • Lead/Terminal Type: Radial
  • Number Leads/Terminals: 2
  • Color: Brown
  • Temperature: 105
  • Shape: Round
  • Termination Method: Solder

16V 4700uf Capacitor Applications : –

  • Polarized, the longer lead is positive electrode while the shorter one is negative electrode.
  • Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
Package : –

1 x 16V 4700uf Capacitor Aluminum Electrolytic Polar Capacitor
