Mercury Open Optical Module KY-017 Tilt Switch for Arduino

Sold by
sherjaan
@ sherjaan

A Mercury Open Optical Module KY-017 has a mercury blob as a means to close its internal contacts. If the switch is level, the mercury bridges the 2 contact points. But if the switch is tilted, the mercury moves on one side and the contact points are open.

 150.00  130.00

In stock

A Mercury Open Optical Module KY-017 has a mercury blob as a means to close its internal contacts. If the switch is level, the mercury bridges the 2 contact points. But if the switch is tilted, the mercury moves on one side and the contact points are open.

The Keyes Mercury Open Optical Module KY-017 is a simple and effective motion detecting module. When your autonomous vehicle or robot is tilted the mercury ball inside the tube will move to complete an electrical circuit which will in turn send a signal to your Arduino control system. Commonly used in bike anti theft system where tilt is detected and alarm or SMS is sent to the owner.

Made of high quality material and with fine workmanship, these modules are with high strength and durable for long-term use. They are also stable and reliable on performance for professional design. Suitable use development and application, these digital temperature sensor modules are great for DIY project.

Mercury Open Optical Module is a switch that responds to movement. It uses a small mercury ball that completes the circuit when the module is tilted.

Compatible with many electronics platforms like Arduino, Raspberry Pi, ESP32 and others. For less sensitive tilt detection use the KY-020 tilt switch.

Mercury Open Optical Module and a digital interface, built-in 13 LED build a simple circuit to produce tilt warning lamp 13 comes with digital interfaces of the LED, the mercury tilt switch sensor interface to access digital 3, when the tilt switch sensor senses a key signal, LED lights, otherwise off.

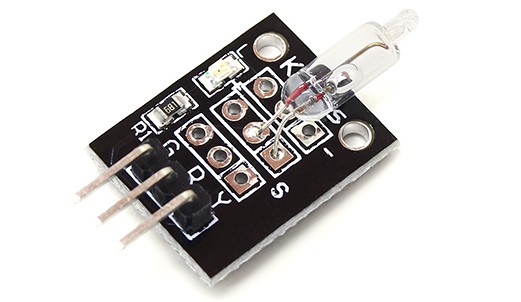

This Mercury Open Optical Module KY-017 consists of a mercury switch, a 680Ω resistor and a LED that will light up when tilt is detected. The mercury ball will open/close the circuit when the module is rotated.

Features: –

  • Working voltage: 3.3V~5V
  • Digital switch output (0 & 1)
  • High quality and durable in use
  • Easy to install and use
  • Stable and reliable performance
  • High sensitivity
  • With fixed bolt hole for easy installation
  • Works with Official for Arduino Boards
  • Application: For for Arduino DIY project
  • Material PCB
  • Dimensions: 31 x 15 x 8 mm / 1.22 x 0.59 x 0.31 inch
  • Weight: 2 g / 0.07 oz
  • Color: Black

Mercury Open Optical Module KY-017 Specifications: –

  • Material: FR4
  • Length: 30mm
  • Width: 15mm
  • Height: 10mm
  • Weight: 1.50g
  • KY017 Mercury Switch
  • Operating voltage: 3-5vdc
  • On board LED
  • Compatible with Arduino
  • can act as tilt Sensor

Datasheet: –

curtocircuito.com.br/…atasheet/KY-017.pdf

Package: –

1 x Mercury Open Optical Module KY-017
