5v MAX485 TTL To RS485 Converter Module Board for Arduino
TECH HALLROAD
The 5v MAX485 TTL To RS485 Converter Module allows MCUs to use the RS-485 differential signaling for robust long distance serial communications. The 5v MAX485 TTL To RS485 Converter Module is an accessory board used for adding the RS485 transceiver to your application board.
₨ 120.00
The 5v MAX485 TTL To RS485 Converter Module allows MCUs to use the RS-485 differential signaling for robust long distance serial communications. The 5v MAX485 TTL To RS485 Converter Module is an accessory board used for adding the RS485 transceiver to your application board. The RS485 Board (5V) features a MAX485 onboard, integrated pin headers and connectors. It is designed to use for 5V power supply.
If you want to make the second development will be more convenient. It has 120 ohm matching resistance, shorted R0 can, it is recommended that users in the long distance transmission shorted.
5v MAX485 TTL To RS485 Converter Module is a converter card that has MAX485 integrated on it and provides high-speed data transmission to the user even in noisy environments by using the RS-485 protocol for communication.
This board works with DC 5V voltage. With TTL-RS485, you will be able to communicate between one or more Arduino, PIC and many other microcontrollers. In addition, you will be able to communicate between the relevant microcontrollers and all sensors using the RS-485 communication protocol.
This 5v MAX485 TTL To RS485 Converter Module that allows the TTL interface of the microcontroller to be transferred to the RS485 module. It generally use for industrial automation. This module adds lightning protection design and anti-jamming design.
When we use it in the field and carry out long distance transmission, we can Connect the GND end of the module to the ground so that lightning protection and anti-interference can be achieved.
It uses a standard 2.54 mm pitch design.
5v MAX485 TTL To RS485 Converter Module supports communication between multiple microcontrollers, allowing up to 128 devices on the bus. It can be hot-swappable, in order to prevent signal interference.
Features: –
A 5v MAX485 TTL to RS485 converter module is a device that converts a standard TTL signal to an RS485 signal. MAX485 Module allows you to connect devices that use TTL serial communication to a network that uses RS485 serial communication.
The MAX485 Module is a popular chip used in RS485 converters. 5v MAX485 TTL to RS485 converter module is a low-power, high-performance transceiver that can transmit data at speeds up to 2.5 Mbps. The 5v MAX485 TTL to RS485 converter module typically has the following features:
- On-board MAX485 chip, A low power consumption for the RS-485 communication, slew-rate limited transceiver.
- A low power consumption for the RS-485 communication
- Onboard then 5.08 (mm) pitch 2P terminal to facilitate RS-485 communication wiring.
- Slew-rate limited transceiver
- All pins of the chip have been lead to can be controlled through the microcontroller.
- Convenient RS-485 communication wiring
- Multiple Units can connect to the same RS-485 bus wiring.
- All Chip pins are brought out for proper controls.
5v MAX485 TTL To RS485 Converter Module Specifications: –
- Use MAX485 Interface chip
- Uses differential signaling for noise immunity
- Distances up to 1200 meters
- Speeds up to 2.5Mbit/Sec
- Multi-drop supports up to 32 devices on same bus
- Red power LED
- 5V operation
Connection: –
The module has two 4-pin headers on the assembly. The headers are space 1.6″ apart, so if using with solderless breadboards, it is necessary to bridge two different breadboards.
1 x 4 Header (Data side)
- RO = Receiver Output. Connects to a serial RX pin on the microcontroller
- RE = Receiver Enable. Active LOW. Connects to a digital output pin on a microcontroller. Drive LOW to enable receiver, HIGH to enable Driver
- DE = Driver Enable. Active HIGH. Typically jumper to RE Pin.
- DI = Driver Input. Connects to serial TX pin on the microcontroller
1 x 4 Header (Output side)
- VCC = 5V
- B = Data ‘B’ Inverted Line. Common with the B
- A = Data ‘A’ Non-Inverted Line. Connects to A on far end module
- GND = Ground
1 x 2 Screw Terminal Block (Output side)
- B = Data ‘B’ Inverted Line. Connects to B on far end module
- A = Data ‘A’ Non-Inverted Line. Connects to A on far end module
Datasheet: –
cdn-3a4dd4ab.ozdisan.com/…/536980_9596625.pdf
Package: –
1 x 5v MAX485 TTL To RS485 Converter Module Board for Arduino
Related Products at majju.pk
- DC-DC Verstelbare Step-Down Buck Converter LM2596 3a
- USB to TTL Converter UART Module CH340G CH340 3.3v 5v

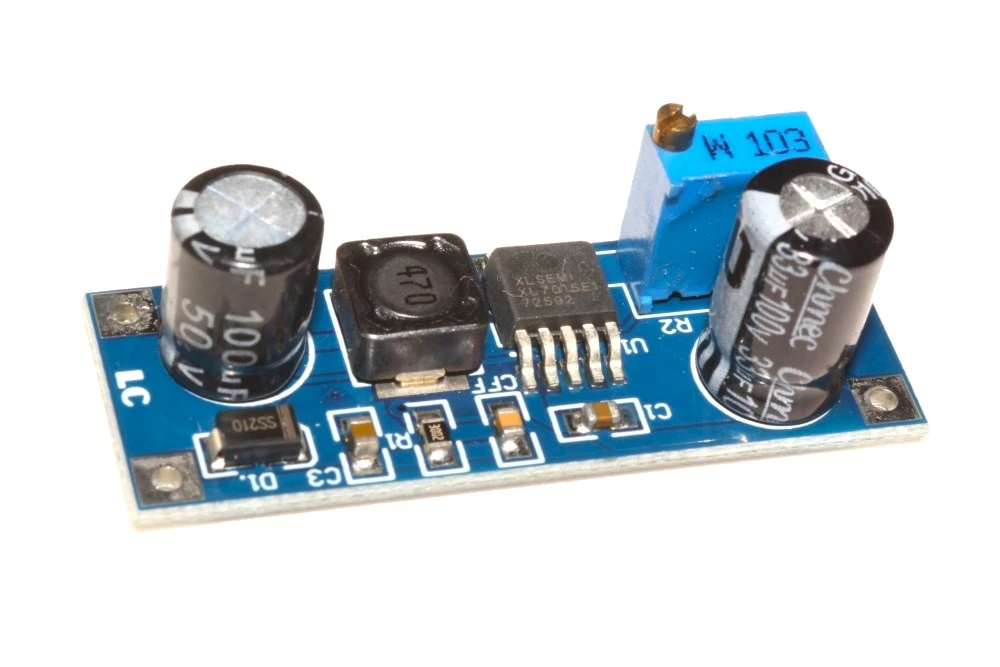

- XL7015 DC-DC Step Down Module 5V-80V Converter
- CH340 USB to TTL Converter UART Module CH340g (3.3 v/5.5 v)
- USB TO SERIAL TTL CONVERTER CP2102
- HW597 CH340 USB to TTL Converter Module
- XL6009 Buck Boost Converter XL6009 Dc to Dc Converter
- LM2596 DC-DC HW-411 Step-Down Buck Converter
- Module DC-to-DC Step Down Converter LM2596 (3a)
- XM1584 DC-DC Buck Converter Miniature HW-133-V1.0
- USB TO RS485 TTL SERIAL CONVERTER
- LM2596 Dual USB Module DC 6V 40V To 5V 3A

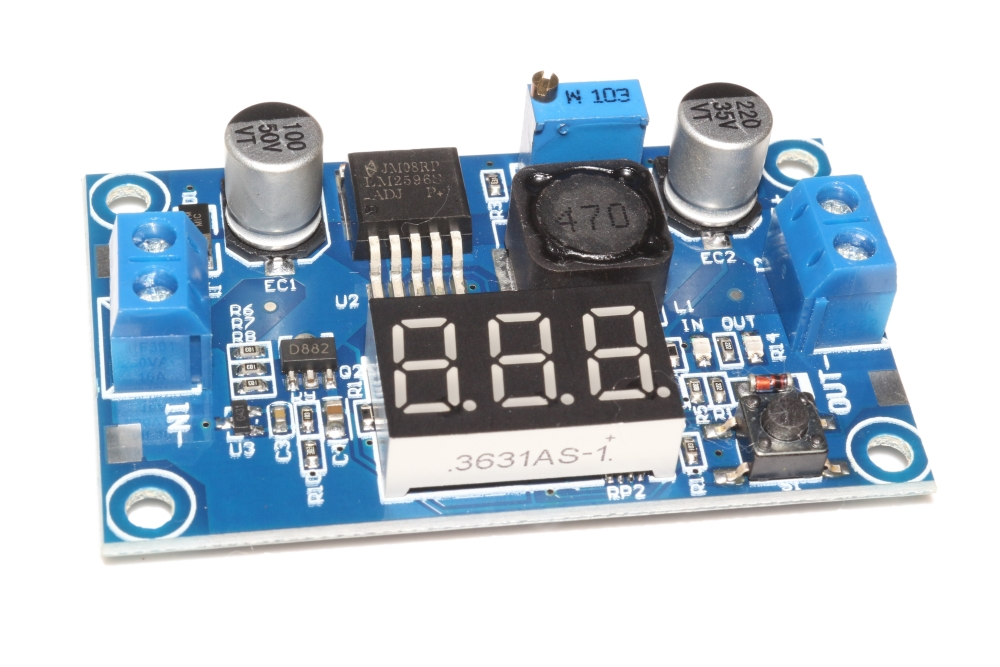

- LM2596 ADJUSTABLE VOLTAGE CONVERTER 0-40V VOLTMETER
