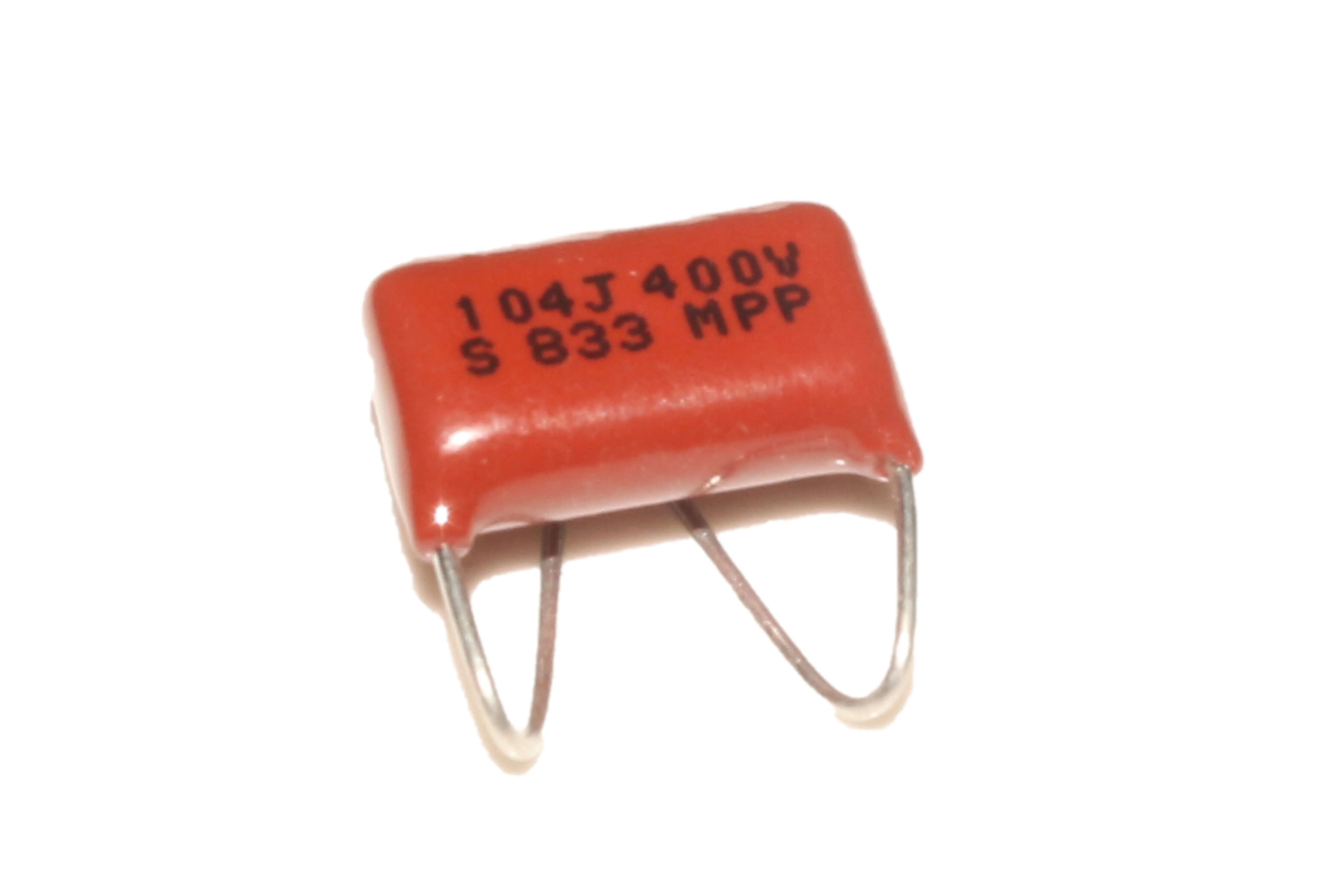

100nf 400v Polyester Film Capacitor

100nF 400V polyester film capacitor is an electrical component that stores energy electrostatically in an electric field. It has a capacitance of 100 nanofarads (nF) and a voltage rating of 400 volts. The dielectric material is made of polyester film, which is a polymer that is known for its high dielectric strength and low loss.

0.1uF/400V (100nF -104K) – Polyester Film Capacitor (originally known as a condenser) is a passive two-terminal electrical component used to store energy electrostatically in an electric field. The Polyester Capacitor is also known as Polyester Film Capacitors has the dielectric material made of a polymer called polyethylene terephthalate (PET).

100nf 400V DC Polyester Capacitor is designed as Through-Hole DIP Polyester Film Capacitor. It also features a high ripple current at high frequency and excellent smoothing ability.

The capacitor comes with an insulator between relative conductors in an electrode. Non-inductive construction using metalized Polyester film with flame-retardant epoxy resin coating.

These Polyester capacitors are designed of metal plates with polyester film arranged between them, or a metalized film is deposited on the insulator. This makes polyester capacitors ideal for a wide range of applications, popular, and cheap capacitors.

Polyester capacitor features a high-temperature coefficient and has high isolation resistance. Thus 100nf 400V DC Polyester Capacitor is defined as the perfect choice of capacitors for coupling and/or storage applications.

This capacitor compared with others, have high capacitance per unit volume. This means more capacitance can fit into a physically smaller capacitor. Moreover, these capacitors offer a wide range of applications in the field of high-frequency circuits and audio and oscillator circuits. etc.

Features : –

Here are some of the benefits of using a 100nF 400V polyester film capacitor

• High dielectric strength
• Low loss
• Wide operating temperature range
• Long life
• Low cost
• High Accuracy, Long-Life Polyester Film Capacitor
• Accuracy: ±5%
• Wide Operating Temperature Range – -55°C to +125°C
• Dielectric Withstand – 1.6x Rated Voltage
• Lead pitch: 15mm
• Length: 16.5mm
• Width: 6mm
• Height: 10mm

100nf 400v Polyester Film Capacitor Specifications : –

Here are some of the Specifications of a 100nF 400V polyester film capacitor

• Capacitance: 100nF
• Voltage rating: 400V
• Dielectric material: Polyester film
• Tolerance: ±5%
• Operating temperature range: -55°C to +125°C
• Lead pitch: 15mm
• Length: 16.5mm
• Width: 6mm
• Height: 10mm

100nf 400v Polyester Film Capacitor Applications : –

Polyester film capacitors uses in a wide variety of applications, including.

• Audio amplifiers
• Oscillators
• Filters
• Power supplies
• Switching circuits

Package : –

1 x 100nf 400v Polyester Film Capacitor
