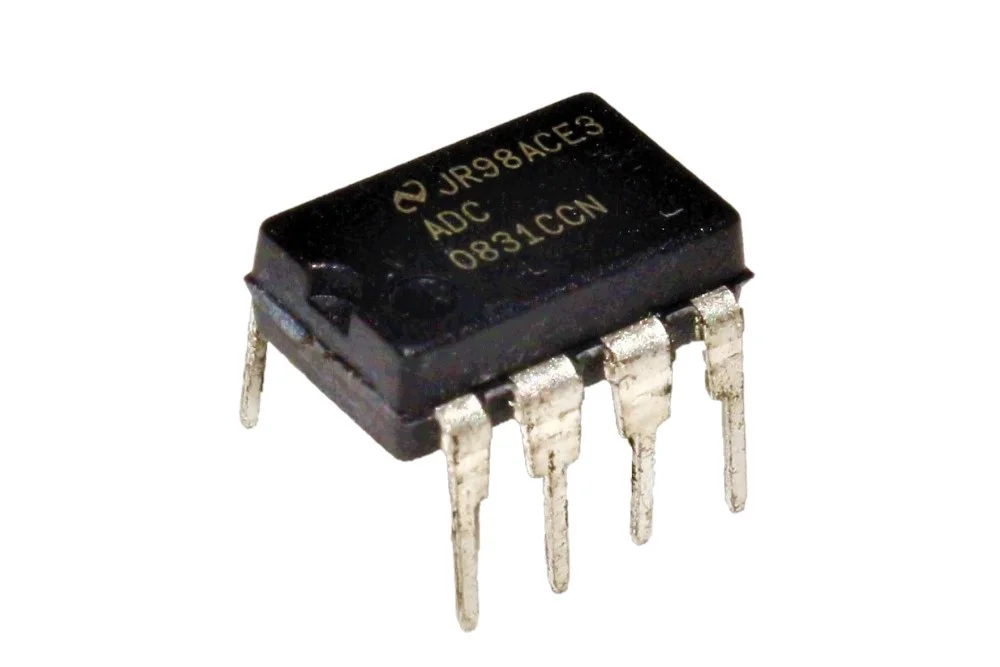

Name: ADC0831 Analog to Digital Converter
SKU: 13758
Price: 200.00 PKR
Availability: InStock

ADC0831 is a successive approximation, 8-bit Analog to Digital Converter. The ADC0831 has a single analog input channel and a serial I/O output for connecting to microcontrollers. The ADC0831 input can be configured for either single-ended or differential inputs. The device operates with a +5Vdc supply.

ADC0831 Analog Digital Converter Integration Packaged in DIP-8. ADC 0831 operates with a supply voltage between 4.5V – 6.3V. ADC0831 series are 8-bit successive approximation A/D converters with a serial I/O and configurable input multiplexers with up to 8 channels.

This Analog Digital Converter Integration has Differential, Single Ended input type and Serial output. It also has a sampling rate of 31kSPS at 8 Bit resolution.

ADC0831 series are 8-bit successive approximation A/D converters with a serial I/O and configurable input multiplexers with to 8 channels. The or 8-channel multiplexers are software configured for single-ended or differential inputs as well as channel assignment.

ADC 0831 is an 8-bit successive approximation analog to digital convertors with serial input and output. This single channel ADC means that only one analog input can be provided at a time.

The serial I/O is configured to comply with the NSC MICROWIRE™ serial data exchange standard for easy interface to the COPS™ family of processors, and can interface with standard shift registers or µPs.

The ADC0831 is an 8-bit successive approximation analog to digital (A/D) converter with a serial I/O port. The 2-, 4- or 8-channel multiplexers are software configured for single-ended or differential inputs as well as channel assignment.

The differential analog voltage input allows increasing the common-mode rejection and offsetting the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution.

Features : –

ADC0831 is an 8-bit successive approximation analog to digital converter (ADC) with a serial input and output. It is available in a 8-pin DIP package and operates with a single 5V supply. The ADC0831 has a number of features that make it ideal for a variety of applications.

NSC MICROWIRE compatible — direct interface to COPS family processors
Easy interface to all microprocessors, or operates “stand-alone”
Operates ratiometrically or with 5 VDC voltage reference
No zero or full-scale adjust required
2-, 4- or 8-channel multiplexer options with address logic
Shunt regulator allows operation with high voltage supplies
0V to 5V input range with single 5V power supply
Remote operation with serial digital data link
TTL/MOS input/output compatible n 0.3″ standard width, 8-, 14- or 20-pin DIP package
20 Pin Molded Chip Carrier Package (ADC0838 only)
Surface-Mount Package

ADC0831 Analog to Digital Converter Specifications : –

The ADC0831 can be used to measure a wide variety of analog signals, such as temperature, pressure, and light intensity. It can also be used to create digital control signals for a variety of devices.

Here is a table of the ADC0831’s specifications,

Resolution 8 Bits
Total Unadjusted Error ±1⁄2 LSB and ±1 LSB
Single Supply 5V DC
Low Power 15 mW
Conversion Time

ADC0831 Analog to Digital Converter Applications : –

If you are looking for an 8-bit ADC with a serial interface, the ADC0831 is a good option to consider. It is a versatile and reliable device that can be used in a wide variety of applications.

Here are some of the applications for the ADC0831:

Temperature measurement
Pressure measurement
Light intensity measurement
Digital control
Data acquisition
Signal conditioning

Pin Description : –

Pin Number	Description
1	CS – Chip Select (Active Low)
2	Vin+ – Positive Analog Voltage Input
3	Vin- – Negative Analog Voltage Input
4	GND – Ground
5	Vref – Voltage Reference
6	DO – Data Output
7	CLK – Clock
8	Vcc – Positive Supply
