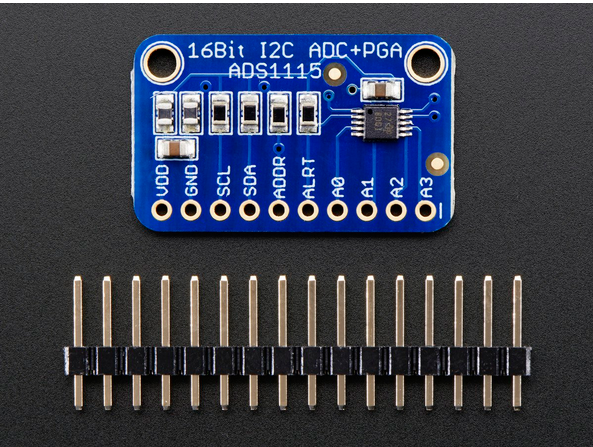

ADS1115 16-BIT ADC – 4 Channel I2C Module

@ TECH HALLROAD

ADS1115 16-BIT ADC – 4 Channel I2C Module is easy to use and can configure with a few simple commands. It is a great choice for any project that requires high-precision analog-to-digital conversion.

Category:

ADS1115 16-BIT ADC – 4 Channel I2C Module is easy to use and can configure with a few simple commands. It is a great choice for any project that requires high-precision analog-to-digital conversion.

ADS1115 is a 16-bit, 4-channel analog-to-digital converter (ADC) that communicates over the I2C bus. It has a programmable gain amplifier (PGA) that can configure to amplify the input signal by 1, 2, 4, 8, or 16 times. This makes it ideal for a wide range of applications.

I2C ADC stands for I2C Analog-to-Digital Converter. It is a type of ADC that uses the I2C communication protocol to communicate with a microcontroller. I2C is a two-wire bus protocol that is very easy to use and requires very few pins on the microcontroller.

16 BIT ADC I2C Module has four analog input channels that can configure as either single-ended or differential inputs. The PGA can also configure to amplify the input signal by a factor of 1, 2, 4, 8, or 16. The ADS1115 can also configure to have a programmable offset voltage.

16 BIT I2C ADC PGA ADS1115 Module is a device that can convert an analog signal into a digital signal. It has 16 bits of resolution, which means that it can represent the analog signal with a precision of 2^16 = 65,536 values. This makes it a good choice for applications where high precision is required, such as data acquisition and control systems.

16 BIT ADC I2C Module is a versatile and powerful tool that can use in a wide variety of applications. They offer high precision, ease of use, and a wide range of features that make them a good choice for many different projects.

Features : –

16 BIT I2C ADC PGA ADS1115 Modules are a versatile and powerful tool that can use in a wide variety of applications. They offer high precision, ease of use, and a wide range of features that make them a good choice for many different projects.

  • 16-bit resolution: The ADS1115 has a 16-bit resolution, which means that it can measure analog signals with a very high degree of precision.
  • I2C communication: The ADS1115 communicates over the I2C bus, which makes it easy to interface with other devices.
  • Programmable gain amplifier: The ADS1115 has a programmable gain amplifier, which allows you to amplify the input signal by a factor of 1, 2, 4, 8, or 16. This is useful for measuring weak signals or for increasing the range of the ADC.
  • Wide operating voltage range: The ADS1115 has a wide operating voltage range of 2.0 V to 5.5 V, which makes it compatible with a variety of power supplies.
  • Low power consumption: The ADS1115 has low power consumption, which makes it ideal for battery-powered applications.
  • Measuring sensor data
  • Controlling electronic devices
  • Interfacing with other microcontrollers

ADS1115 16-BIT ADC Specifications : –

The ADS1115 is easy to use and can configure with a few simple commands. It is a great choice for any project that requires high-precision analog-to-digital conversion.

Here are some of the features of the ADS1115:

  • 16-bit resolution
  • 4-channel input
  • I2C communication
  • Programmable gain amplifier
  • Wide operating voltage range (2.0 V to 5.5 V)
  • Low power consumption

ADS1115 16-BIT ADC Applications : –

Here are some of the applications of a ADS1115 16-bit ADC module:

  • Data acquisition
  • Control systems
  • Robotics
  • Industrial automation
  • Medical devices
  • Scientific instruments
  • Measuring sensor data: The ADS1115 can be used to measure a wide range of sensor data, such as temperature, pressure, and humidity.
  • Controlling electronic devices: The ADS1115 can be used to control electronic devices, such as motors, relays, and LEDs.
  • Interfacing with other microcontrollers: The ADS1115 can be used to interface with other microcontrollers, such as the Arduino and Raspberry Pi.

If you are looking for a high-precision, easy-to-use ADC, the ADS1115 is a great option. It is a versatile chip that can use in a wide range of applications.

Package : –

1 x ADS1115 16-BIT ADC – 4 Channel I2C Module
