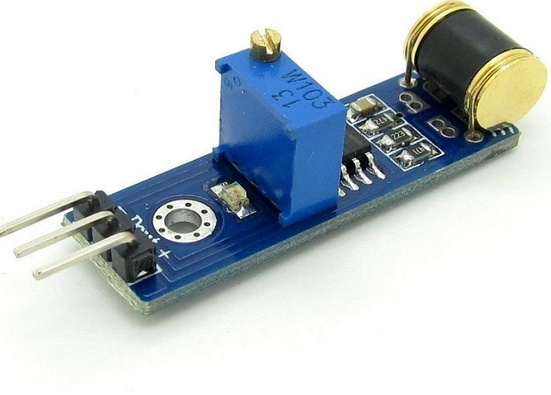

801S Vibration Sensor Module Adjustable Analog Output

@ TECH HALLROAD

The 801S Vibration Sensor Module is a sensitive micro shock detecting sensor that operates by changing its resistance when a shock or vibration is detected.

 450.00

Out of stock

The 801S Vibration Sensor Module is a sensitive micro shock detecting sensor that operates by changing its resistance when a shock or vibration is detected.

This 801S Vibration Sensor changes its resistance level once vibration is detected. It can turn into a switch if the vibration is high.

According to the datasheet, it is gold-plated and can withstand 60 million shocks. This module is connected in a voltage divider which can be measured through its digital pinout.

It’s a high sensitivity 801S Vibration Sensor module, which has one digital output pin(D0), When it detects some vibration up to a certain threshold, it can output High or Low level.

This Vibration sensor based on the Hi high precision vibration sensor 801S, it has 2 outputs, includes TTL and analog output, the sensitivity of TTL output can adjust by the on-board potentiometer.

you can also read the analog output with any ADC to get the vibration condition.

This Vibration sensor is based on the Hi high precision vibration sensor 801S, it has 2 outputs, includes TTL and analog output, the sensitivity of TTL output can be adjusted by the on-board potentiometer, you can also read the analog output with any ADC to get the vibration condition.

It’s a high sensitivity 801S Vibration Sensor module, which has two output signal pin. one digital pin(D0), When it detect some vibration up to certain threshold.

it can output High or Low level. One analog pin(A0), it can real-time output voltage signal of the 801S vibration.

Features: –

  • Outputs a logic HIGH when module senses a vibration
  • On-board LED indicator
  • A gold alloy plating ensures a long service life of sensor
  • 3.3V and 5V logic compatible
  • Micro-Shock detecting
  • Non direction limited
  • 60,000,000 times shock guarantee (special gold alloy plated)
  • Low cost circuit can adjust Sensitivity

801S Vibration Sensor Module Specifications: –

  • The main chip: LM393, 801S
  • Work voltage: DC 5V
  • With the signal output instructions
  • With analog and TTL level signal output signal output
  • The output valid signal is high, the light goes out
  • Sensitivity adjustable (fine tuning)
  • Vibration detection range, non-directional
  • With mounting holes, firmware installation flexible and convenient

801S Vibration Sensor Module Pin Description: –

  • A0 Analog signal output pin
  • G Ground
  • + Power(5V/3.3V)
  • D0 Digital signal output pin
Package: –

1 x 801S Vibration Sensor Module Adjustable Analog Output
