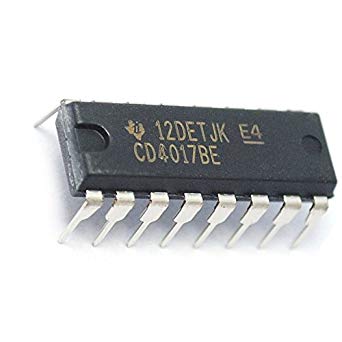

CD4017 4017 IC Decade Counter LED Chaser

@ MODERN HALLROAD

CD4017 4017 IC Decade Counter LED Chaser is a versatile IC that can use in a variety of applications. CD4017 is a good choice for projects that require a decade counter or a random number generator.

 50.00

Out of stock

Category: Tags: ,

CD4017 4017 IC Decade Counter LED Chaser is a versatile IC that can use in a variety of applications. CD4017 is a good choice for projects that require a decade counter or a random number generator.

4017 is a CMOS decade counter IC. It is a 10-stage Johnson counter, which means that it can count from 0 to 9. The CD4017 has 10 outputs, Q0 through Q9, which are high when the corresponding counter stage is high. The CD4017 also has a 10th output, ENABLE, which is high when the counter enabled.

4017 is a CMOS hex D-type Flip-flop has independent DATA inputs. The clock and CLEAR inputs are common to all six units. Data are transferred to the Q outputs on the positive-going transition of the clock pulse. All sic flip-flops are simultaneously reset by a low level on the CLEAR input. It meets all requirements of JEDEC tentative standard no. 13B, ‘standard specifications for description of ‘B’ series CMOS devices’.

The IC CD4017 can also use as a divider to divide the frequency in multiples. It produces ten decoded outputs, generally used as a divider or counter.

The counter IC module contains 4 CMOS D flip-flops that are independently accessible. However, flip-flop clocks and resets (clear) are all tied together for synchronous operation.

The CD4017 is a CMOS quad D-type flip-flop integrated circuit (IC). It is a positive-edge triggered flip-flop, which means that the data on the D input is transferred to the Q output on the positive-going edge of the clock signal. The CD4017 has four independent D-type flip-flops, each with its own clock, clear, and preset inputs.

Features : –

The CD4017BC is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carry out bit.

  • High speed 16 pin CMOS Decade counter
  • Supports 10 decoded outputs
  • Wide supply voltage range from 3V to 15V, typically +5V
  • TTL compatible
  • Maximum Clock Frequency: 5.5Mhz

CD4017 4017 IC Decade Counter LED Chaser Specifications : –

The configuration of the CD4017BC and CD4022BC permits medium speed operation and assures a hazard free counting sequence. The 10/8 decoded outputs are normally in the logical “0” state and go to the logical “1” state only at their respective time slot. Each decoded output remains high for 1 full clock cycle.

  • Number of Elements : 1
  • Number of Bits per Element : 6
  • Clock Frequency : 16MHz
  • Max Propagation Delay @ V, Max CL : 100ns @ 15V, 50pF
  • Trigger Type : Positive Edge
  • Current – Output High, Low : 6.8mA, 6.8mA
  • Voltage – Supply : 3 V ~ 18 V
  • Current – Quiescent (Iq) : 4µA
  • Input Capacitance : 5pF
  • Operating Temperature : -55°C ~ 125°C (TA)
  • Mounting Type : Through Hole
  • Package / Case : 16-DIP (0.300″, 7.62mm)

CD4017 4017 IC Decade Counter LED Chaser Applications : –

The CD4017 is a versatile IC that can use in a variety of applications. It is a good choice for projects that require data storage, sequential circuit design, or logic gates.

IC CD4017 use for counting applications, it has the capability to turn on 10 outputs sequentially in a pre-defined time and reset the count or hold it when required. It also has the capability to indicate the status of counting using Carry pin. Commonly use for Led chasers and other logical output projects.

so if you are looking for an sequential decoded counting IC that can count up to 10 then this IC will be your right choice. The CD4017 can use in a variety of applications, such as:

  • Data storage: The CD4017 can use to store data in a temporary or permanent manner.
  • Sequential circuit design: The CD4017 can be used to create sequential circuits, such as counters, shift registers, and ring buffers.
  • Logic gates: The CD4017 can use to create logic gates, such as AND gates, OR gates, and XOR gates.
  • Other applications: The CD4017 can use in a variety of other applications, such as pulse generation, timing, and data acquisition.
Package : –

1 x CD4017 4017 IC Decade Counter LED Chaser
