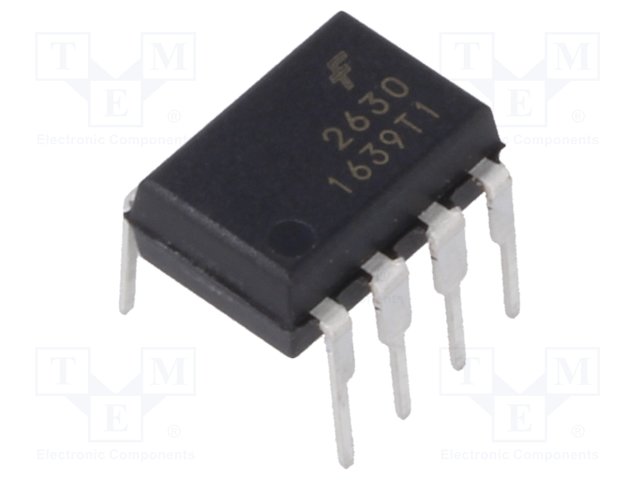

HCPL2630, OPTOISOLATOR OPEN COLLECTOR, 3.75kV
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
In electronics, an opto-isolator, also called an optocoupler, photocoupler, or optical isolator, is a component that transfers electrical signals between two isolated circuits by using light.
₨ 150.00 ₨ 119.00
Specifications:
- Number of Channels : 2
- Inputs – Side 1/Side2 : 2/0
- Voltage – Isolation : 3750Vrms
- Common Mode Transient Immunity (Min) : 5kV/µs
- Input Type : DC
- Output Type : Open Collector, Schottky Clamped
- Current – Output / Channel : 50mA
- Data Rate : 10MBd
- Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
- Rise / Fall Time (Typ) : 24ns, 10ns
- Voltage – Forward (Vf) (Typ) : 1.5V
- Current – DC Forward (If) (Max) : 15mA
- Voltage – Supply : 4.5 V ~ 5.5 V
- Operating Temperature : -40°C ~ 85°C
- Mounting Type : Through Hole
- Package / Case : 8-DIP (0.300″, 7.62mm)
- Supplier Device Package : 8-DIP
