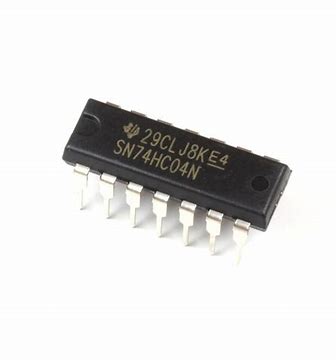

74HC04 Hex Converter IC

74HC04 is a hex inverter IC. It contains six independent inverters, each with one input and one output pin. The IC is packaged in a 14-pin DIP and operates on a power supply voltage of 2.0 V to 6.0 V.

The 74HC04 is a CMOS (complementary metal-oxide-semiconductor) device, which means that it consumes very little power. It is also a high-speed device, with a propagation delay of only 15 ns.

74HC04 inverters utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. It has high noise immunity and the ability to drive 10 LS-TTL loads.

The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

The 74HC04 is a CMOS (complementary metal-oxide-semiconductor) device, which means that it consumes very little power. It is also a high-speed device, with a propagation delay of only 15 ns.

It is a triple buffered inverter with high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family.

It has an operating voltage range from 2V to 6V and consumes only 20uA of current. When operating at 5V, the minimum high level input voltage is 3.15V and the maximum low level input voltage is 1.35V. 74HC04 inverter IC utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits.

Features : –

74HC04 is a hex inverter IC. It contains six independent inverters, each with one input and one output pin. The IC package is a 14-pin Dual Inline Package (DIP) and operates on a power supply voltage of 2.0 V to 6.0 V.

• 6 Hex Inverters in a 14-Pin DIP Package
• Outputs Directly Interface to CMOS, NMOS and TTL
• Large Operating Voltage Range
• Wide Operating Conditions

74HC04 Hex Converter IC Specifications : –

74HC04 is a powerful and versatile IC that can use in a wide variety of applications. It is a low-cost, high-speed, and low-power device that is ideal for use in digital electronics.

Here are some additional details about the 74HC04:

• Input voltage range: 2.0 V to 6.0 V
• Output current: 25 mA
• Propagation delay: 15 ns
• Package: 14-pin DIP
• Operating temperature range: -40 °C to 125 °C

74HC04 Hex Converter IC Applications : –

The 74HC04 is a CMOS (complementary metal-oxide-semiconductor) device, which means that it consumes very little power. It is also a high-speed device, with a propagation delay of only 15 ns. The 74HC04 is a versatile IC that can be used in a wide variety of applications. Some common applications include:

• Logic gates: The 74HC04 can use to create a variety of logic gates, such as AND gates, OR gates, and NOT gates.
• Counters: The 74HC04 can use to create counters, which are devices that count the number of pulses that have been received.
• Shift registers: The 74HC04 can use to create shift registers, which are devices that shift data one bit at a time.
• Multiplexers: The 74HC04 can use to create multiplexers, which are devices that select one of several data inputs to be sent to an output.

Package : –

1 x 74HC04 Hex Converter IC
