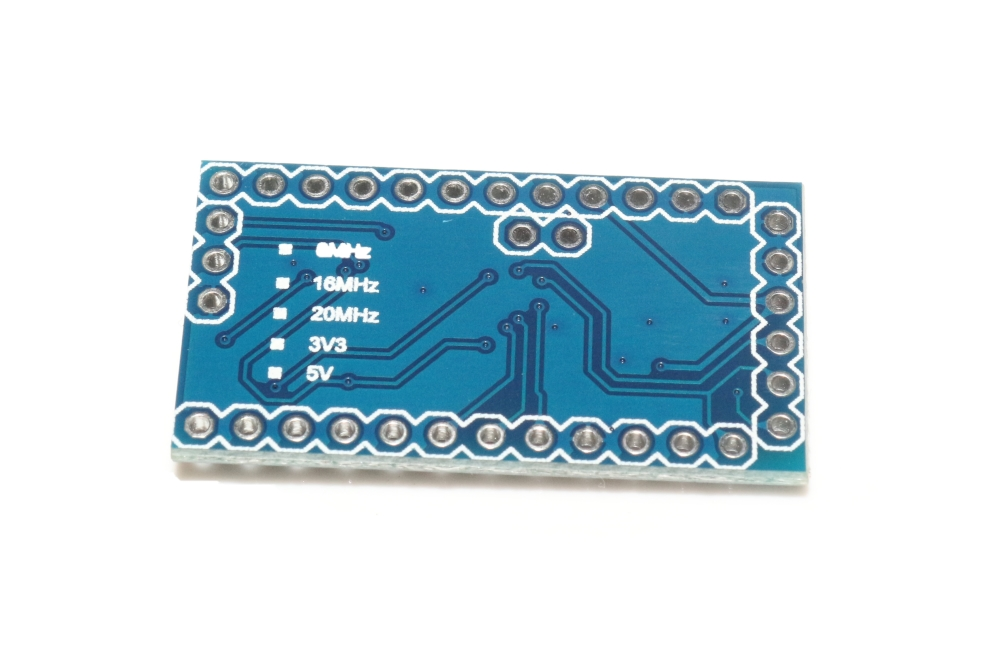

Arduino Mini 3.3v/8mhz Atmega328P Microcontroller Board

Arduino Mini 3.3v/8mhz Atmega328P Microcontroller Board also known as Arduino Pro mini atmega328p board is one of application boards. Since it is an application board it does not have in-built programmer.

Pro mini atmega328p was developed for applications and installations where space is premium and projects are made as permanent set ups. Small, available in 3.3 V and 5 V versions, powered by ATmega328P.

The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.

The Arduino Pro Mini intend for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires.

The Arduino Pro Mini can power with an FTDI cable or breakout board connected to its six pin header, or with a regulated 3.3V or 5V supply (depending on the model) on the Vcc pin.

There is a voltage regulator on board so it can accept voltage up to 12VDC. If you’re supplying unregulated power to the board, be sure to connect to the “RAW” pin on not VCC.

The Arduino Pro Mini is a microcontroller board based on the ATmega328P.

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable to provide USB power and communication to the board.

Features : –

• ATmega328 running at 8MHz with external resonator
• USB connection off board
• 3.3V regulator
• Max 150mA output
• Over current protected

Arduino Mini 3.3v/8mhz Atmega328P Microcontroller Board Specifications : –

• Microcontroller ATmega328
• Board Power Supply 3.35 -12 V (3.3V model) or 5 – 12 V (5V model)
• Circuit Operating Voltage 3.3V
• Digital I/O Pins 14
• PWM Pins 6
• UART 1
• SPI 1
• I2C 1
• Analog Input Pins 6
• External Interrupts 2
• DC Current per I/O Pin 40 mA
• Flash Memory 32KB of which 2 KB used by bootloader *
• SRAM 2 KB *
• EEPROM 1 KB *
• Clock Speed 8 MHz (3.3V versions) or 16 MHz (5V versions)

Arduino Mini 3.3v/8mhz Atmega328P Microcontroller Board Documents : –

• Schematic
• Eagle Files
• Getting Started Tutorial
• Graphical Datasheet
• GitHub

Package : –

1 x Arduino Mini 3.3v/8mhz Atmega328P Microcontroller Board
