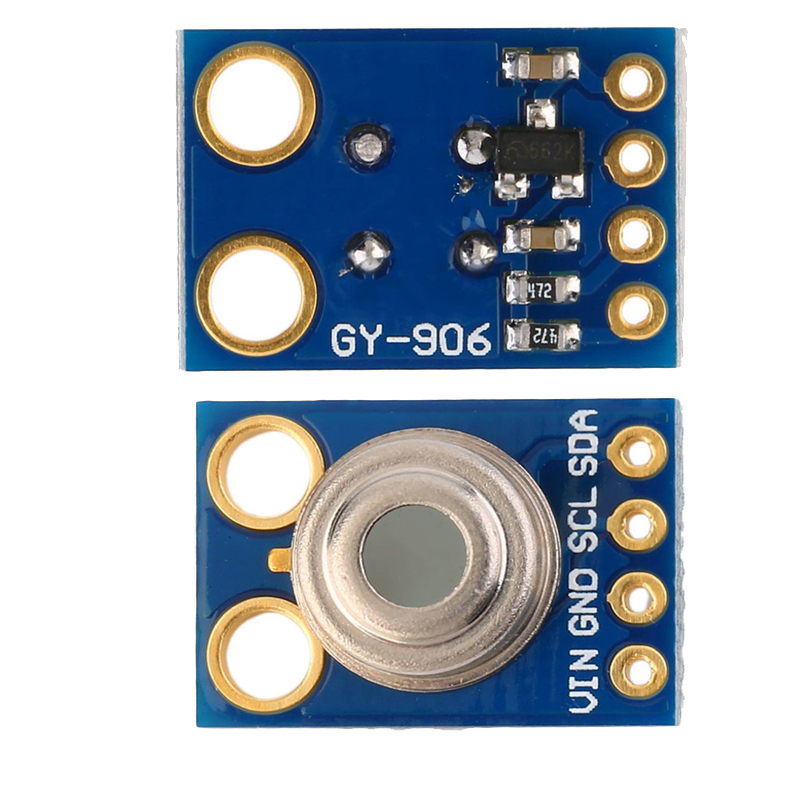

GY-906 MLX90614ESF Contactless IR Temperature Sensor

@ MODERN HALLROAD

The GY-906 MLX90614ESF is a high precision infrared non-contact thermometer module with I2C interface and 5V or 3.3V operation. It is based on the MLX90614ESF sensor, which is a factory-calibrated infrared thermometer with a temperature measurement range of -70°C to +380°C and an accuracy of 0.5°C around room temperature. The GY-906 module also has a PWM output and an interrupt output, which can use to trigger other devices when the temperature reaches a certain threshold.

 3,000.00

Only 2 left in stock

SKU: R9C1-14 Category: Tag:

The GY-906 MLX90614ESF is a high precision infrared non-contact thermometer module with I2C interface and 5V or 3.3V operation. It is based on the MLX90614ESF sensor, which is a factory-calibrated infrared thermometer with a temperature measurement range of -70°C to +380°C and an accuracy of 0.5°C around room temperature. The GY-906 module also has a PWM output and an interrupt output, which can use to trigger other devices when the temperature reaches a certain threshold.

The GY-906 MLX90614ESF can operate with an input voltage of 3.3V or 5V. The default voltage is 5V, but it can change by connecting the VCC pin to 3.3V. The module will automatically adjust its operation to the input voltage.

The MLX90614 has a thermopile detector that converts the infrared energy emitted by an object into an electrical signal. The electrical signal is then amplified and converted into a digital value by the sensor’s signal processing unit. The digital value is then read by a microcontroller or other device.

The MLX90614 has a temperature measurement range of -70°C to +380°C and an accuracy of 0.5°C around room temperature. The sensor is also factory calibrated, so it does not require any additional calibration.

The MLX90614 has a 17-bit ADC, which means that it can measure temperature with a resolution of 0.02°C. The sensor also has a powerful DSP unit, which helps to improve the accuracy of the temperature measurements. The DSP unit can compensate for environmental factors such as ambient temperature and emissivity, which can affect the accuracy of the temperature measurements.

The combination of the 17-bit ADC and the powerful DSP unit gives the MLX90614 high accuracy and resolution. This makes it a valuable sensor for applications where accurate temperature measurements are critical, such as medical diagnostics and industrial process control.

Features : –

The MLX90614 is a factory-calibrated infrared thermometer with a temperature measurement range of -70°C to +380°C and an accuracy of 0.5°C around room temperature. The sensor has an I2C interface, which makes it easy to connect to a microcontroller like Arduino. The MLX90614 Non-Contact Infrared Temperature Sensor Module has a number of benefits, including:

  • Non-contact temperature measurement: The MLX90614 can measure the temperature of an object without touching it, which makes it ideal for measuring the temperature of moving objects or objects that are difficult to reach.
  • High accuracy: The MLX90614 has an accuracy of 0.5°C around room temperature, which makes it a reliable sensor for a variety of applications.
  • Wide temperature range: The MLX90614 can measure temperatures from -70°C to +380°C, which gives it a wide range of applications.
  • Small size and low cost: The MLX90614 is a small, lightweight sensor that is also relatively inexpensive, making it a cost-effective option for many applications.
  • Easy to use: The MLX90614 is easy to use and can be interfaced with a variety of microcontrollers.

GY-906 MLX90614ESF Contactless IR Temperature Sensor Specifications : –

The MLX90614 is a factory-calibrated sensor, so it does not require any additional calibration. The sensor is also available in a dual-zone version, which can measure the temperature of two objects simultaneously. here are the specifications of the MLX90614 infrared temperature sensor:

  • Operating voltage: 3.3V to 5V
  • Operating current: 1.3mA to 2.0mA
  • Temperature measurement range: -70°C to +380°C
  • Accuracy: 0.5°C around room temperature
  • Resolution: 0.02°C
  • Field of view: 80°
  • Distance between object and sensor: 2cm-5cm (approx.)
  • Interface: I2C
  • Dimensions: 3.9mm x 3.8mm x 1.5mm
  • Weight: 0.4g

Here are some of the features of the MLX90614 that contribute to its high accuracy and resolution:

  • 17-bit ADC: The MLX90614 has a 17-bit ADC, which means that it can measure temperature with a resolution of 0.02°C.
  • DSP unit: The MLX90614 has a powerful DSP unit, which helps to improve the accuracy of the temperature measurements. The DSP unit can compensate for environmental factors such as ambient temperature and emissivity, which can affect the accuracy of the temperature measurements.
  • Factory calibration: The MLX90614 is factory calibrated, which means that it is already accurate when you receive it.

GY-906 MLX90614ESF Contactless IR Temperature Sensor Pin Descriptions : –

The MLX90614 infrared temperature sensor has 6 pins, which are label as follows:

  • VCC: The power supply pin. The sensor can power by a voltage of 3.3V to 5V.
  • GND: The ground pin.
  • SCL: The I2C clock pin.
  • SDA: The I2C data pin.
GY-906 MLX90614ESF Contactless IR Temperature Sensor Applications : –

The GY-906 MLX90614ESF is a non-contact infrared temperature sensor module that can use in a variety of applications. Here are some of the most common applications:

  • Industrial process control: The GY-906 MLX90614ESF can use to monitor the temperature of industrial processes, such as ovens, furnaces, and reactors.
  • Medical diagnostics: The GY-906 MLX90614ESF can use to measure the temperature of human bodies, which can be used for medical diagnostics and treatment.
  • Home automation: The GY-906 MLX90614ESF can use to control home appliances, such as ovens, thermostats, and air conditioners.
  • Security and surveillance: The GY-906 MLX90614ESF can use to detect fire or intrusion, or to monitor the temperature of objects in a security environment.
  • Scientific research: The GY-906 MLX90614ESF can use for scientific research, such as studying the thermal properties of materials or the effects of temperature on biological systems.

The GY-906 MLX90614ESF is a versatile sensor that can use for a variety of applications. Its non-contact temperature measurement, high accuracy, wide temperature range, and small size make it a valuable tool for many applications.

Package : –

1 x GY-906 MLX90614ESF Contactless IR Temperature Sensor
