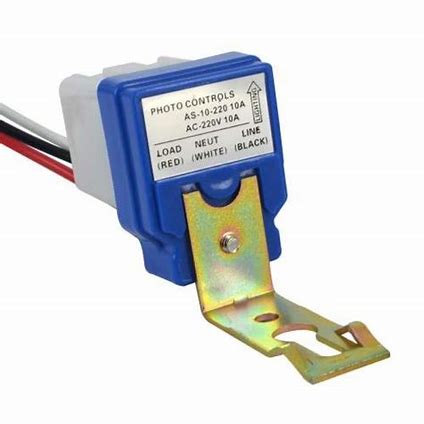

Photocell Light Sensor Switch in Pakistan

Photocell Light Sensor Switch is ready to use automatic night sensor switch which automatically turns on the light in the evening time or dark time.

This auto on-off AS-10-220 switch & photocontrol sensor switch, 100% brand new and high quality to turn on the light in the night and turn off the light in a day without manual operation.

A Photocell Light Sensor Switch is essentially a light dependent resistor, LDR. Its resistance decreases with increasing incident light intensity.

They are used in many applications for on-off control especially in lighting installations.

In lighting applications, Photocells are placed in streetlights to control when the lights are ON or OFF. During daylight, light falling on the photocell causes the streetlights to turn off and during night hours or darkness to turn on.

Thus energy is saved by ensuring the lights are only on during hours of darkness.

AS-10 type electric lamp automatic switch is based on a novel photoelectric switch photoelectric semiconductor element to design characteristics. It mainly composed of a photoresistor sealed by CDs and an integrated circuit.

The working voltage is DC 12V with load of max 10A. When there is light, your light will automatic turn on. Built in light control circuit, so that your light won’t work in day and work only at night or there is dim light. Designed with 3 wire.

You can install the switch on your wall or other place. The energy saving switch for your DC light is ideal for use in stairwell, toilets, public buildings where lights are only required when occupied.

Features: –

• This Light Switch enables you to turn on or off the light day and night without manual operation.
• Novel design, reliable, and long service life.
• Widely used: street light, highway, factories, garden, ports, airports, farms, parks, schools, and other places.
• Also can fit into solar lamps and lanterns, or cars, motorcycles, electric cars, and other power supply voltage is AC220V lamps and lanterns or equipment.
• It can install on the wood, metal, and concrete pole.
• Automatic switch wire connection: white line and black line connect power, white line and red line connect load.

Photocell Light Sensor Switch Specifications: –

• Working Power: AC 100V~250V, 50/60HZ

• Load Power: LED ≤ 40W , Energy Saving≤60W, Incandescent ≤ 100W, Fan ≤ 50W

• Standby power 0.0088W

• Illumination: 5LUX~5000LUX

• Sensor Distance: 6~10m

• Sensor Angle: 110~140 degree

Applications: –

• Corridor,
• Toilets
• Basements
• Warehouses
• Garage and other places of automatic lighting
• Exhaust fan and other automatic control electrical can be used for security purposes at the same time

Package: –

1 x Photocell Light Sensor Switch
