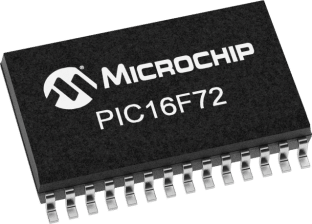

Name: PIC16F72 28-Pin 8-Bit Cmos Flash Microcontroller with A/D Converter
SKU: 13371
Price: 300.00 PKR
Availability: InStock

PIC16F72 28-Pin 8-Bit Cmos Flash Microcontroller is a powerful and easy-to-program CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices.

The PIC16F72 features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, capture/compare/PWM function and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus.

PIC16F72 is a low-cost, low-power, high-speed CMOS Flash technology capable, 8-bit, fully-static Microcontroller unit that has 28 pins out of which 22 pins can be used as I/O pins. It has Power-on-Reset (POR) as well as the Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) circuitry.

All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

It has a wide operating voltage ranging from 2V to 5.5V. Thus, it can be used in 3.3V or 5.0V logic level operations. The below image is showing the detailed pin diagram of the PIC16F72.

Features: –

High Sink/Source Current: 25 mA
Timer0: 8-bit timer/counter with 8-bit prescaler
Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock
Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
Capture, Compare, PWM (CCP) module – Capture is 16-bit, max. resolution is 12.5 ns – Compare is 16-bit, max. resolution is 200 ns – PWM max. resolution is 10-bit
8-bit, 5-channel analog-to-digital converter
Synchronous Serial Port (SSP) with SPI™ (Master/Slave) and I2C™ (Slave)
Brown-out detection circuitry for Brown-out Reset (BOR)

PIC16F72 28-Pin 8-Bit Cmos Flash Microcontroller Specifications: –

1,000 erase/write cycle FLASH program memory typical
Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation Programmable code protection
Power saving SLEEP mode
Selectable oscillator options
In-Circuit Serial Programming™ (ICSP™) via 2 pins
Processor read access to program memory

PIC16F72 28-Pin 8-Bit Microcontroller CMOS Technology : –

Low power, high speed CMOS FLASH technology
Fully static design
Wide operating voltage range: 2.0V to 5.5V
Industrial temperature range
Low power consumption: – < 0.6 mA typical @ 3V, 4 MHz – 20 µA typical @ 3V, 32 kHz – < 1 µA typical standby current
