Produino USB 1200mA DC 2~5V to DC 5V Voltage

Sold by
sherjaan
@ sherjaan

Produino USB 1200mAh DC 2.5V to DC 5V Buck Boost Converter is a small, efficient, and easy-to-use power supply module. It can be used to power a variety of devices from a wide range of input voltages.

 150.00

Out of stock

Categories: ,

Produino USB 1200mAh DC 2.5V to DC 5V Buck Boost Converter is a small, efficient, and easy-to-use power supply module. It can be used to power a variety of devices from a wide range of input voltages.

The module features a built-in boost converter that allows it to output a constant 5V DC voltage from input voltages as low as 2.5V. This makes it ideal for powering devices such as Arduino boards, Raspberry Pi, and other single-board computers.

The Produino USB 1200mAh DC 2.5V to DC 5V Buck Boost Converter has a number of features that make it a good choice for a variety of applications. These features include:

If you are looking for a small, efficient, and affordable power supply module, then the Produino USB 1200mAh DC 2.5V to DC 5V Buck Boost Converter is a great option.

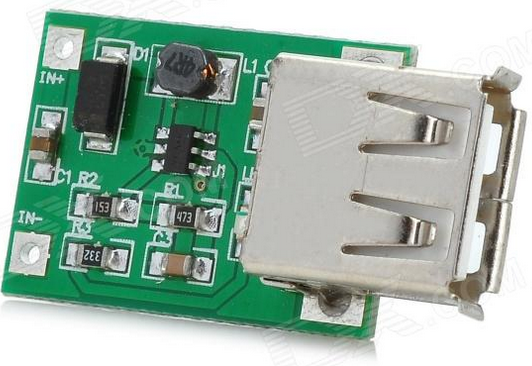

Produino USB 1200mA DC 2~5V to DC 5V Voltage Step up Boost Module Can supply power for cellphone, digital camera, single chip and other digital devices; USB 2.0 female socket, wide usage, transfer efficiency up to 96%, compact design, easy to install; With working indicator.

Input any DC voltage of 0.9V ~ 5V, output 5V DC can be stable, with two AA batteries input to the output current of 500 ~ 600MA, a single AA battery power supply output current 200ma so for mobile phones camera, single- chip, digital products supply. Stable output 5V DC voltage.

This Produino USB 1200mA mini booster module has USB female power output interface, being widely used. Input voltage 2V-5V, output 5V, plus or minus 0.1V belong to the normal range of error. High conversion efficiency, and continuously working for long time. Relationship between the input voltage and output current (long time continuous working) as follows: Vin Aout >= 2.0V 600mA >= 2.5V 800mA >= 3.0V 1000mA >= 3.5V 1200mA

Features: –

  • small PFM control DC / DC boost controller chip onboard
  • input any DC voltage of 0.9V ~ 5V, output 5V DC can be stable, with two AA batteries input to the output current of 500 ~ 600MA, a single AA battery power supply output current 200ma so for mobile phones camera, single- chip, digital products supply. Stable output 5V DC voltage
  • onboard USB female, can be directly powered USB interface device with USB female, versatile
  • on-board input voltage indicator
  • PCB size: 34 (mm) x16.2 (mm) ultra-small size, installed in a variety of small equipment

Produino USB 1200mA Specifications: –

  • Input voltage: 2.0V 5.0V
  • No load output voltage: 5.1V 0.1V
  • Transfer efficiency: 90%(max), 85%(average)
  • If charge for iPhone 5, voltage should over 3V
  • Input 2 v ~ 5 v dc voltage, can stable output 5v dc voltage
  • Input with two AA batteries can output current of 1000 ma, single section lithium batteries can be output current of 1200 ma
  • Charging for mobile phone, camera, single chip microcomputer, digital products With USB, wide range of uses
  • 3.7V up to 5V / 1A typical application efficiency reached 87%
  • Ultra small size
  • With indicator light, and set aside to identify the installation position of resistance Color is shown as pictures

Package: –

1 x Produino USB 1200mA DC 2~5V to DC 5V Voltage
