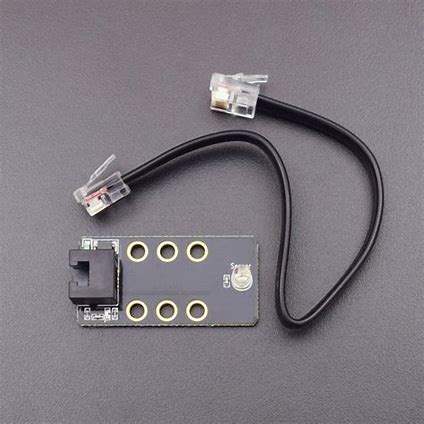

Name: Robobloq Light Sensor with RJ11 Connecting Wire in Pakistan
SKU: 18607
Price: 1200.00 PKR
Availability: OutOfStock

This Robobloq Light Sensor is developed based on the photoelectric effect principle of semiconductors.

The main component of this sensor is a phototransistor and it can be used to detect the intensity of ambient light. Its electrical resistance decreases as the intensity of light increases. Via connecting in series with another resistor, the phototransistor will output divided voltage value of its own resistor, this whole process can convert the variable optical signal intensity into an alterable electrical signal value, then it will output it from the analogue port.

Robobloq Light Sensor usually used to produce interactive works that produce special effects as light intensity changes, such as smart table lamp robots and light tracking robots.

The light sensor is a passive device that converts the light energy into an electrical signal output. Light sensors are more commonly known as Photoelectric Devices or Photo Sensors because they convert light energy (photons) into electronic signal (electrons). Phototransistors, photoresistors, and photodiodes are some of the more common type of light intensity sensors.

Support Arduino IDE programming, and provide runtime to simplify programming. Support Robobloq graphical programming for all ages. Installation using M4 holes, compatible with robobloq, easy to use RJ11 interface

Specifications

Operating Voltage	DC 5V
Range of working temperature	-30 ° C to 70 ° C
Module size	50 x 24 x 15 mm ( length x width x height )
Output	Analogue value 0-1023
Reference	Exposure to daylight (> 500), night (0 to 100), indoor lighting (100 to 500)

Robobloq Light Sensor Characteristics

The light sensor supports Arduino IDE programming, and provides runtime libraries to simplify programming.
The sensor is available for Robobloq-APP and MyQode-PC GUI operating based on scratch, suitable for all ages.
It can be used for installation with M4 holes, compatible with Robobloq metal-related robots and Lego blocks.
Having an RJ11 interface makes it convenient to connect to any black port on the Q-mind series motherboards. (Both Q-mind and Q-mind plus included)
After the robot successfully connects to the PC, the sensor name will pop out automatically, and the sensor name can be seen in the console on the APP side.
