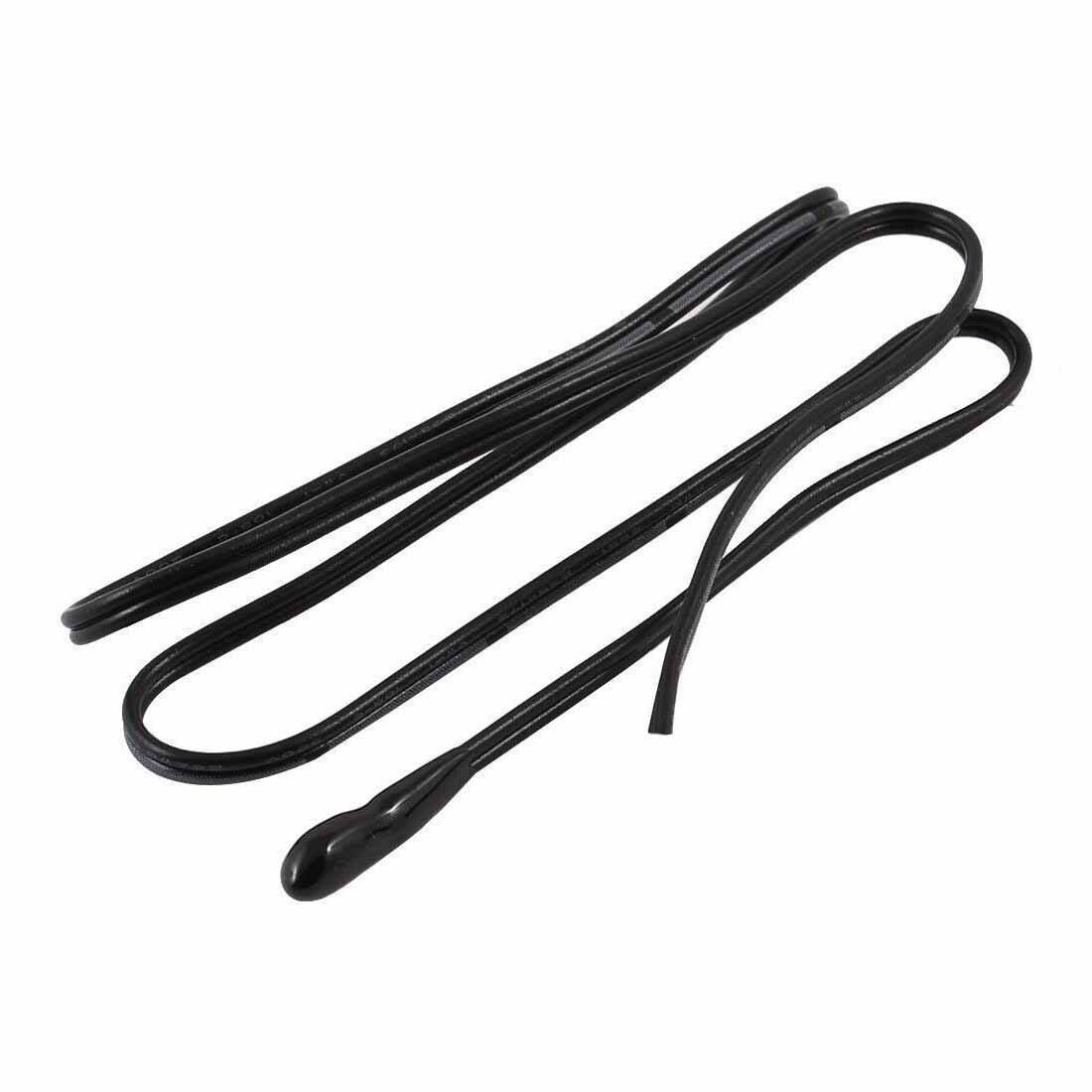

10K 1% Epoxy NTC Thermistor

Sold by
sherjaan
@ sherjaan

A 10K 1% epoxy NTC thermistor is a type of thermistor that has a resistance of 10,000 ohms at 25°C and an accuracy of ±1%. The thermistor is coated in epoxy, which protects it from moisture and other environmental factors.

 270.00

Out of stock

A 10K 1% epoxy NTC thermistor is a type of thermistor that has a resistance of 10,000 ohms at 25°C and an accuracy of ±1%. The thermistor is coated in epoxy, which protects it from moisture and other environmental factors.

Thermistors are temperature-sensitive resistors that change their resistance depending on the temperature. NTC thermistors, like the 10K 1% epoxy thermistor, have a negative temperature coefficient, meaning that their resistance decreases as the temperature increases.

The working principle of a 10K 1% epoxy thermistor is based on the negative temperature coefficient (NTC) of thermistors. This means that the resistance of the thermistor decreases as the temperature increases.

The 10K 1% epoxy thermistor has an accuracy of ±1%. This means that the actual resistance of the thermistor will be within 1% of the specified resistance at a given temperature. The amount of resistance change is proportional to the change in temperature. This means that the thermistor can be used to measure temperature by measuring its resistance.

The input voltage of a 10K 1% epoxy thermistor can vary depending on the circuit that it is used in. However, the thermistor itself does not have any specific input voltage requirement.

In most cases, the thermistor will be connected to a voltage divider circuit. This circuit will provide a voltage that is proportional to the resistance of the thermistor. The output voltage of the voltage divider circuit will then used to measure the temperature.

The voltage divider circuit will typically use a reference voltage of 5V or 3.3V. The output voltage of the voltage divider circuit will then be between 0V and the reference voltage. The actual output voltage will depend on the resistance of the thermistor.

Features : –

The 10K 1% epoxy thermistor is a versatile and reliable sensor that can use in a wide range of applications. It has a number of benefits, including:

  • Accuracy: The thermistor has an accuracy of ±1%, which means that the actual resistance of the thermistor will be within 1% of the specified resistance at a given temperature. This makes it a reliable sensor for use in applications where accuracy is important.
  • Stability: The thermistor is stable over a wide range of temperatures, from -55°C to 125°C. This makes it a suitable sensor for use in applications where the temperature may fluctuate.
  • Cost-effectiveness: The thermistor is a cost-effective sensor, making it a good option for applications where cost is a factor.
  • Robustness: The thermistor is coated in epoxy, which protects it from moisture and other environmental factors. This makes it a suitable sensor for use in harsh environments.

10K 1% Epoxy NTC Thermistor Specifications : –

Here are the specifications of a 10K 1% epoxy NTC thermistor:

  • Resistance: 10,000 ohms at 25°C
  • Accuracy: ±1%
  • Temperature range: -55°C to 125°C
  • B-value: 3950
  • Epoxy coating

The B-value is a measure of the sensitivity of the thermistor to temperature. The higher the B-value, the more sensitive the thermistor is to temperature. The epoxy coating protects the thermistor from moisture and other environmental factors. This makes it a suitable sensor for use in harsh environments. Here are some additional specifications that may be relevant depending on the application:

  • Lead length: Typically 100 mm
  • Lead wire material: Tin-plated copper
  • Dissipation factor: 5 mW/°C
  • Peak voltage: 1800 V
  • Stress sustain: 9.8 N

10K 1% Epoxy NTC Thermistor Applications : –

The 10K 1% epoxy NTC thermistor is a versatile and reliable sensor that can be used in a wide range of applications. It is a cost-effective sensor that is accurate, stable, and robust. The 10K 1% epoxy NTC thermistor is a versatile sensor that can use in a wide range of applications. Here are some of the most common applications:

  • Temperature measurement
  • Temperature compensation
  • Heat sensing
  • Humidity sensing
  • Switch control
  • Current limiting
  • Medical applications
  • Industrial applications
  • Environmental monitoring
  • Automotive applications

If you are looking for a reliable and accurate temperature sensor, a 10K 1% epoxy thermistor is a good option. It is a versatile sensor that can use in a wide range of applications.

Package : –

1 x 10K 1% Epoxy NTC Thermistor
