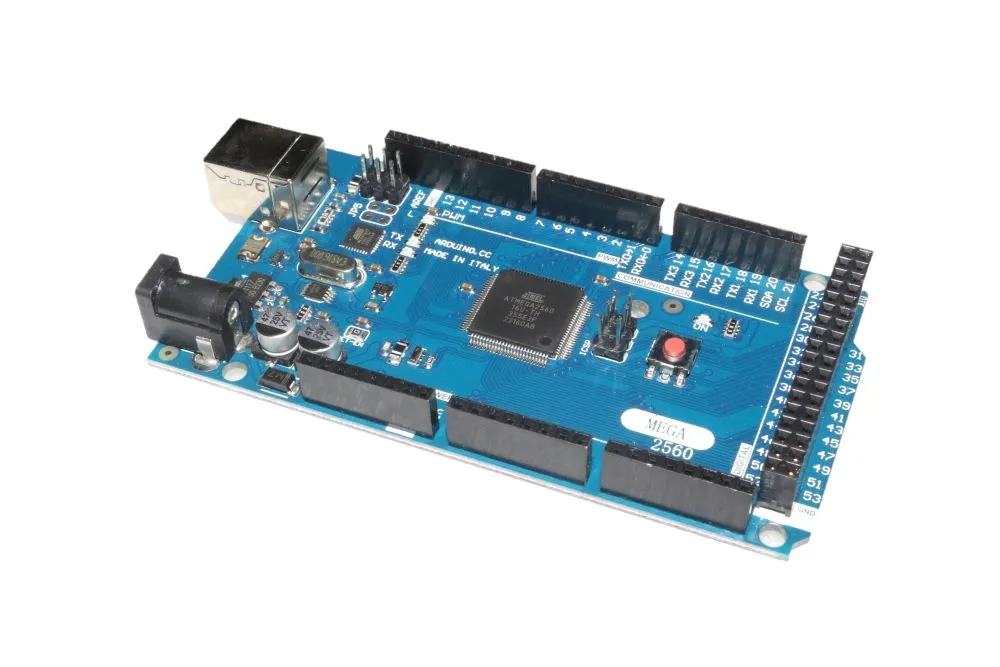

Name: Arduino Mega 2560 R3 with Cable
SKU: R4C2-1
Price: 4200.00 PKR
Availability: InStock

The Arduino Mega 2560 R3 is an open-source microcontroller board based on the ATmega2560 AVR microcontroller. Mega 2560 R3 Board has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

The Mega 2560 Rev3 is designed for projects that require more I/O lines, more sketch memory, and more RAM. Arduino Mega 2560 R3 is a popular choice for robotics, 3D printing, and other projects that require a lot of control over external devices.

The Mega 2560 is a powerful and versatile microcontroller board that can be used to build a wide variety of projects. The Arduino Mega 2560 R3 is compatible with most Arduino shields, which allows you to add additional functionality to your projects.

The Arduino Mega 2560 Rev3 operates on a voltage of 5V. However, it can power by a voltage between 7V and 12V. Mega 2560 R3 Board has a built-in voltage regulator that converts the input voltage to 5V. If you are powering the board from the USB port, the voltage will be 5V. If you are powering the board from the power jack, you can use a voltage between 7V and 12V.

The Mega 2560 has 256 KB of flash memory for storing code, 8 KB of SRAM, and 4 KB of EEPROM. This gives you plenty of space to write complex programs and store data.

Arduino shields are add-on boards that expand the functionality of your Arduino board. The Mega 2560 is compatible with most Arduino shields, which gives you a wide range of options to choose from.

Features : –

The Mega 2560 has 54 digital input/output pins, of which 15 can be used as PWM outputs. Arduino Mega 2560 R3 also has enough memory to store complex robot control programs. The Arduino Mega is a popular microcontroller board for a variety of reasons, including:

Large number of I/O pins
Large amount of memory
Compatibility with Arduino shields
Open-source platform

Arduino Mega 2560 R3 Specifications : –

This Mega 2560 R3 is a good choice for projects that require a lot of control over external devices, such as robots and 3D printers. Arduino Mega R3 can draw up to 200mA. So, Make sure that the power supply can provide enough current for your project.

The Mega 2560 has enough I/O pins to control multiple motors, servos, and sensors, making it a good choice for building robots. The Mega 2560 has 256 KB of flash memory for storing code, 8 KB of SRAM, and 4 KB of EEPROM. This gives you plenty of space to write complex programs and store data. Here are the specifications of the Arduino Mega 2560 Rev3:

Microcontroller: ATmega2560 AVR
Operating voltage: 5V
Input voltage range: 7V to 12V
Digital input/output pins: 54 (of which 15 can be used as PWM outputs)
Analog input pins: 16
UARTs: 4
Crystal oscillator: 16 MHz
USB connection
Power jack
ICSP header
Reset button
Flash memory: 256 KB (of which 8 KB is used for the bootloader)
SRAM: 8 KB
EEPROM: 4 KB

Arduino Mega 2560 R3 Pin Descriptions : –

The Atmega2560 R3 has 54 digital input/output pins (of which 15 can use as PWM outputs), and 16 analog inputs. The pins are labeled with numbers and names, and are grouped into several different types.

In addition to the pins listed above, the Arduino Mega 2560 R3 also has a number of other pins that are use for specific purposes, such as the reset button, the power jack, and the ICSP header.

Digital pins
Analog pins
PWM pins
Serial pins
I2C pins
SPI pins

Arduino Mega 2560 R3 Applications : –

The Arduino Mega 2560 Rev3 is a popular choice for a wide variety of projects, including robotics, 3D printing, home automation, and educational projects.

The Mega 2560 has more flash memory, SRAM, and EEPROM than most other Arduino boards. This makes it a good choice for complex projects that require a lot of code, variables, and data storage. The Arduino Mega 2560 Rev3 is a versatile microcontroller board that can use for a wide variety of applications, including:
