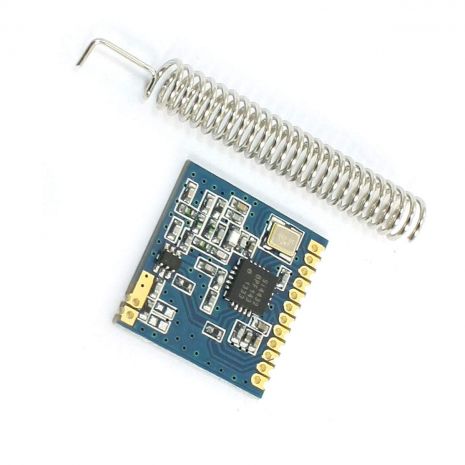

Features:

1.  Small ultra-thin
2. FCC past harmonic notes / CE certification
3. Great ability to penetrate
4. Frequency range: 433.92M
5. High sensitivity up to-121dBm
6. Maximum output power: 20dBm
7. Data transfer rate: 0.123-256 kbps
8. FSK, GFSK and OOK modulation mode
9. 1.8-3.6V power supply

Specifications:

1. Ultra-Thin Power Off Mode
2. Digital signal strength indicator received (RSSI)
3. Synchronization alarm function
4. Automatic antenna connection and bidirectional switch control
5. The configurable data package structure
6. Before sync signal detection
7. 64 bytes RX data record (FIFO)
8. Low power tests
9. Temperature detection and 8-bit analog to digital converter
10. Operating temperature range: -20 ~ + 60 C
11. Integrated voltage regulator
12. Frequency hopping
13. Power-on reset function
14. Integrated lens adjustment function

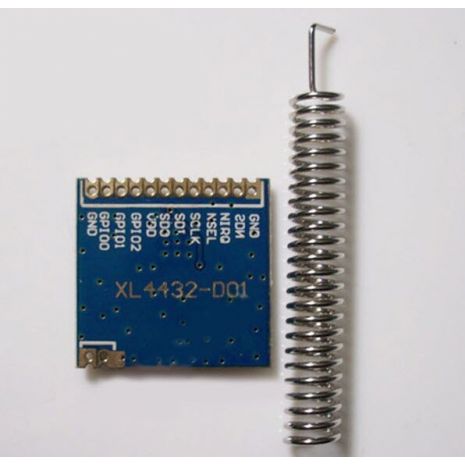

Pin Definitions:

Scope:

1. Remote control
2. Remote reading meter
3. Home security alarm and remote keyless entry
4. Industrial Control
5. Automation and telemetry
6. The data records
7. Control toy
8. Sensor network
9. Pressure control
10. Health surveillance
11. Wireless PC peripheral equipment
12. The label read/write device
