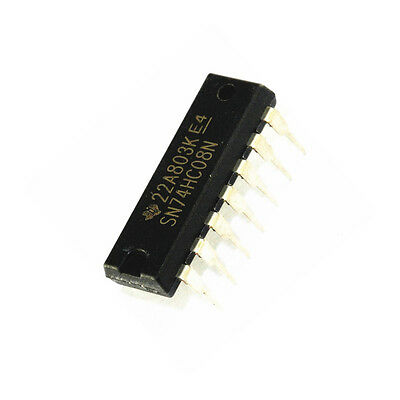

Name: 74HC08 IC Quad 2-Inputs AND Gate
SKU: 13322
Price: 25.00 PKR
Availability: OutOfStock

74HC08 is a Quad 2-input AND gate IC. The 74HC08 has four independent AND gates, each with two inputs and one output. The inputs of the 74HC08 are compatible with standard CMOS logic, while the outputs are compatible with LSTTL logic.

The 74HC08 can use in a variety of applications, including digital logic circuits, control circuits, and data acquisition systems. It is a member of the 74HC00 series of high-speed CMOS logic ICs.

74HC08 AND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The HC08 has buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads.

In electronics, a logic gate is an idealized or physical device implementing a Boolean function; that is, it performs a logical operation on one or more binary inputs and produces a single binary output.

The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

The device is designed for operation with a power supply range of 2.0V to 6.0V.
The maximum current allowed to draw through each gate output is 8mA. Operating voltage range of 4.75V to 5.25V. Maximum supply voltage of 7V. Typical fall time is 18ns.

The 74HC08 works by performing the AND operation on the two inputs of each gate. The output of each gate will be high only if both inputs are high. The outputs of the 74HC08 are buffered, which means that they can drive a higher current than the inputs. This makes the 74HC08 suitable for driving LEDs, motors, and other loads.

Features : –

74HC08 IC Quad 2-Inputs AND Gate utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The HC08 has buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Here are some of the key features of the 74HC08:

High speed: The 74HC08 operates at speeds up to 20 MHz, which makes it suitable for use in high-speed digital circuits.
Low power consumption: The 74HC08 consumes very little power, making it ideal for battery-operated applications.
Wide operating temperature range: The 74HC08 can operate in a wide temperature range of -40°C to +85°C, making it suitable for use in a variety of environments.

74HC08 IC Quad 2-Inputs AND Gate Specifications : –

The 74LS08 provides four independent 2-input AND gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Mount: Through Hole
Package: DIP14
Logic Function: NAND
Number Of Pins:14
Max operating Temperture:85°C
Max. Supply Voltage:6V
Minimum operating temperature:-40°C
Min. supply Voltage:2V

74HC08 IC Quad 2-Inputs AND Gate Applications : –

74HC08 is a versatile and powerful IC that can be used in a wide variety of applications. It is a reliable and cost-effective choice for designers of digital circuits.

Here are some of the applications of the 74HC08:
