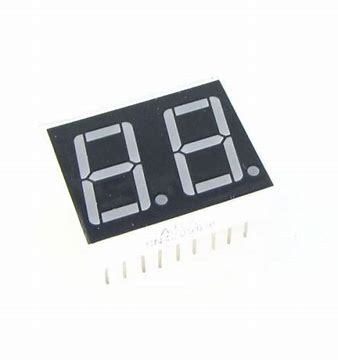

2 Digit 7 Segment LED Common Anode Display

Sold by
sherjaan
@ sherjaan

This 2-digit 7-segment LED display common anode is a type of electronic display that uses seven segments to display numbers and letters. 2-digit common anode has 10 pins, 5 for each digit. The first pin (pin 1) is the common anode, and the other 9 pins are the segments A, B, C, D, E, F, G, and DP (decimal point).

 35.00

In stock

This 2-digit 7-segment LED display common anode is a type of electronic display that uses seven segments to display numbers and letters. 2-digit common anode has 10 pins, 5 for each digit. The first pin (pin 1) is the common anode, and the other 9 pins are the segments A, B, C, D, E, F, G, and DP (decimal point).

The common anode means that all the anodes of the LED segments are connected together. To turn on a segment, the corresponding cathode pin is connected to ground. To turn off a segment, the corresponding cathode pin is left floating.

The forward voltage drop of a typical LED segment is about 1.8V, so the input voltage of 2-3V will provide enough voltage to turn on the LED segments. The current limiting resistor is used to limit the current through the LED segments to a safe value.

A two digit seven segment display is a type of electronic display that uses seven segments to display numbers and letters. It has 10 pins, 5 for each digit. The first pin (pin 1) is the common anode, and the other 9 pins are the segments A, B, C, D, E, F, G, and DP (decimal point).

To display a number, you need to apply a high voltage (typically 2-3V) to the appropriate segments. For example, to display the number 1, you would apply a high voltage to the segments A, B, C, and E.

7-Seven Segment Display, also written as “Seven Segment Display”, consists of seven LEDs (according to their name) arranged in a rectangular fashion as shown. Each of the seven LEDs is called a segment because when illuminated the segment forms part of a numerical digit to be displayed.

Features : –

Overall, 2 digit 7 segment LED displays common anode are a versatile and reliable option for a variety of projects. They are relatively inexpensive, easy to use, and available in a variety of colors and features. There are several benefits to using a 2-digit 7-segment LED display common anode.

  • Relatively inexpensive. 2-digit 7-segment LED displays are relatively inexpensive, making them a cost-effective option for many projects.
  • Easy to use. 2-digit 7-segment LED displays are relatively easy to use, making them a good choice for beginners.
  • Available in a variety of colors. 2-digit 7-segment LED displays are available in a variety of colors, allowing you to customize your project to match your needs.
  • Long lifespan. 2-digit 7-segment LED displays have a long lifespan, making them a reliable choice for long-term projects.

2 Digit 7 Segment LED Common Anode Specifications : –

The specifications of a Two Digit Seven Segment Display common anode can vary depending on the specific display, but some common specifications include:

  • Number of pins: 10 pins, 5 for each digit.
  • Common anode: All the anodes of the LED segments are connected together.
  • Segment pins: The segment pins are A, B, C, D, E, F, G, and DP (decimal point).
  • Input voltage: Typically 2-3V.
  • Forward voltage drop: Typically 1.8V for each LED segment.
  • Current limiting resistor: Typically 220-330 ohms for each LED segment.
  • Brightness: Typically 100-150 mcd.
  • Viewing angle: Typically 45-60 degrees.
  • Color: Red, green, yellow, and blue are common colors.
  • Lifespan: Typically 10,000 hours.

2 Digit 7 Segment LED Common Anode Applications : –

Seven Segment 2 Digit LED display common anode can use to display a variety of numbers and characters. It is a common display in digital clocks, calculators, and other electronic devices. Two Digit Seven Segment Display common anode are used in a variety of applications, including:

  • Digital clocks: Two Digit Seven Segment Display commonly use in digital clocks to display the time.
  • Calculators: Two Digit Seven Segment Display commonly use in calculators to display the numbers being entered and calculated.
  • Electronic meters: Two Digit Seven Segment Display commonly use in electronic meters to display measurements such as voltage, current, and temperature.
  • Arduino projects: Two Digit Seven Segment Display are a popular choice for Arduino projects because they are relatively easy to use and can use to display a variety of information.
  • Other applications: Two Digit Seven Segment Display can use in a variety of other applications, such as traffic lights, vending machines, and gaming consoles.
2 Digit 7 Segment LED Common Anode Pin Descriptions : –

The common anode pin is typically connected to a positive voltage source. The individual segment pins are connected to ground through a current limiting resistor. To turn on a segment, the corresponding cathode pin is connected to ground. To turn off a segment, the corresponding cathode pin is left floating. The DP (decimal point) segment typically use to display a decimal point or a comma. To display a number, the appropriate segments are turned on.

Pin Name Description
1 Common Anode This is the common anode pin for all the LED segments.
2 A This pin controls the A segment of the display.
3 B This pin controls the B segment of the display.
4 C This pin controls the C segment of the display.
5 D This pin controls the D segment of the display.
6 E This pin controls the E segment of the display.
7 F This pin controls the F segment of the display.
8 G This pin controls the G segment of the display.
9 DP This pin controls the decimal point of the display.
Package : –

1 x 2 Digit 7 Segment LED Common Anode
