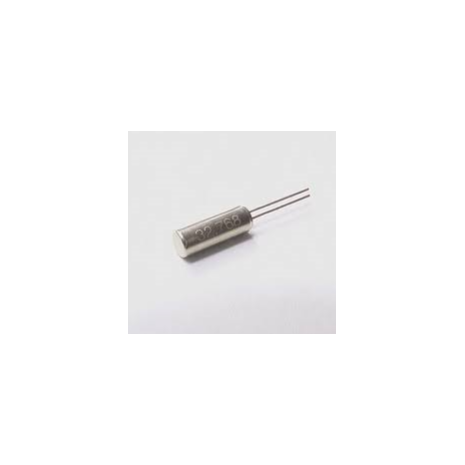

32kHz Crystal Oscillator Low-Power Crystal Oscillator

32kHz crystal oscillator is a type of electronic component that produces a square wave signal with a frequency of 32,768Hz. It use in a variety of electronic devices, including watches, clocks, and real-time clocks.

Crystal oscillators work by using the piezoelectric properties of quartz crystals. When an electric current is applied to a quartz crystal, it vibrates at a specific frequency. This frequency can control by the dimensions of the crystal.

Crystal oscillators are very accurate and stable devices. They are typically specified with a frequency tolerance of +/-20ppm, which means that the frequency of the output signal will vary by no more than 20 parts per million from the specified frequency.

32kHz crystal oscillators are available in a variety of package types, including through-hole, surface mount, and ball grid array (BGA).

32kHz Crystal Oscillator also know as Standard ‘Watch’ or Real-Time-Clock crystal. 32.768kHz means it is precisely half of a 16-bit counter. Start counting at 0x8000 (or 32768).

For most applications, the cold start-up time is not critical and the data sheet recommendations can be used. However, for those applications where cold start-up time is a consideration, this 32kHz Crystal Oscillator describes a method for determining the minimum allowable POR pulse width. Supply voltage and ambient temperature effects are shown. Part-to-part variation is explored.

32kHz crystal oscillators are a common and versatile component that can use in a variety of electronic devices. They are accurate, stable, and available in a variety of package types.

Features : –

• Product: Crystal oscillator
• Oscillator value: 32KHZ
• Material: Steel
• Color: Silver white
• High Stability
• Mounting Type: Through Hole

32kHz Crystal Oscillator Specifications : –

• Frequency: 32 khz
• Frequency Tolerance: 10 ppm
• 2 Pin DIP 32khz Through-Hole Crystal Oscillator

32kHz Crystal Oscillator Applications : –

32khz crystal oscillators are a common and versatile component that can use in a variety of electronic devices. They are accurate, stable, and available in a variety of package types.

By considering these factors, you can choose the right 32khz crystal oscillator for your application.

• Basic Components
• Resonance circuit
• DIY projects
• Electrical/electronic projects
• Clock generator for microcontrollers
• DTMF decoder
• It provides clock pulses of 8 Mhz frequency.
• The 32KHz Oscillator can be used as UART clock (6×1.8432 MHz).
• It allows integer division to common baud rates (96×115200 baud or 96×96×1,200 baud).
• The 32kHz oscillator is a common clock for AVR microcontroller.
• The 32 KHz crystal oscillator has uses in microprocessor clock, network card, various consumer electronics

Package : –

1 x 32kHz Crystal Oscillator Low-Power Crystal Oscillator
