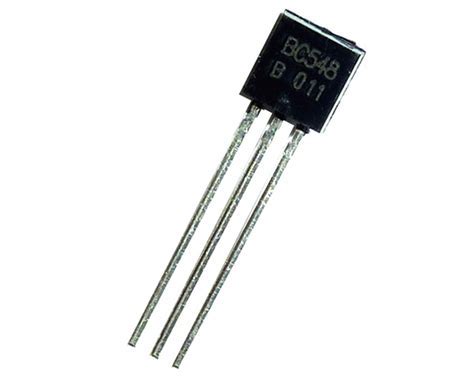

BC548 NPN Transistor 30V/0.1A

The BC548 NPN transistor is a general purpose BJT that is widely use in electronic circuits. Transistor BC548 NPN is a low-cost and easy-to-use transistor that can use for a variety of applications, including amplifiers, switches, and oscillators.

This BC548B Transistor is a versatile transistor that can use for a variety of electronic applications. BC548B NPN Transistor is a specific type of BC548 transistor. It is manufactured by Fairchild Semiconductor and has a current gain (hFE) of 100-300. BC548 also has a collector-emitter breakdown voltage (VCEO) of 30 V and a collector-base breakdown voltage (VCBO) of 80 V.

The maximum VCE rating for a BC548 transistor is 65 V. However, it is generally recommended to keep the VCE below 30 V to avoid damaging the transistor. The typical VBE for a BC548 transistor is 0.7 V. However, the VBE can vary depending on the current gain (hFE) of the transistor.

The BC548 transistor is a bipolar junction transistor (BJT). BJTs work by controlling the flow of current through a semiconductor material using an electric field. The BC548 transistor has three terminals: the base, the collector, and the emitter. The base terminal controls the flow of current through the collector and emitter terminals.

The BC548 transistor can use as an amplifier or as a switch.

• As an amplifier:

When the BC548 transistor is use as an amplifier, a small signal is applied to the base terminal. The transistor amplifies this signal and produces a larger signal at the collector terminal.

• As a switch:

The BC548 transistor is use as a switch, a small signal applied to the base terminal to turn the transistor on or off. When the transistor is turn on, current flows from the collector to the emitter. When the transistor is turn off.

Salient Features : –

The BC548B transistor is a relatively easy transistor to use. BC548B NPN Transistor has a simple three-terminal configuration and is relatively forgiving of mistakes. The BC548 transistor is a reliable transistor that can withstand a moderate amount of abuse. This makes it a good choice for projects where reliability is important.

The BC548 transistor is a versatile transistor that can use for a variety of applications. BC548 NPN transistor is a popular choice for hobbyists and electronics engineers alike. Here are some of the benefits of using the BC548B NPN transistor:

• Affordable
• Easy to use
• Versatile
• Reliable

BC548 NPN Transistor Specifications : –

The BC548 transistor is a relatively inexpensive transistor. The BC548 transistor NPN can use to amplify signals from sensors, microphones, and other sources. This can useful for applications such as hearing aids, audio amplifiers, and radio receivers. This makes it a good choice for hobbyists and budget-minded electronics projects. The BC548 transistor is a general-purpose bipolar junction transistor (BJT) with the following specifications:

• Current gain (hFE): 100-800
• Collector-emitter breakdown voltage (VCEO): 65 V
• Collector-base breakdown voltage (VCBO): 80 V
• Base-emitter voltage (VBE): 0.7 V
• Operating temperature: -55°C to +150°C

BC548 NPN Transistor Pin Descriptions : –

The BC548 transistor is typically use with a current limiting resistor in the base circuit. This resistor helps to prevent the transistor from being damaged by excessive current. The BC548B NPN transistor has three pins: the base, the collector, and the emitter.

• Base pin: The base pin controls the flow of current through the collector and emitter pins.
• Collector pin: The collector pin is the output pin of the transistor.
• Emitter pin: The emitter pin is the input pin of the transistor.

BC548 NPN Transistor Applications : –

The Transistor BC548 NPN is a versatile and reliable transistor that can use for a variety of electronic applications. BC548 Transistor NPN is a good choice for hobbyists and electronics engineers because it is affordable, easy to use, and has a wide range of applications. Here are some common applications for the BC548B NPN transistor:

• Amplifiers
• Switches
• Oscillators
• Drivers
• Protection circuits

Package : –

1 x BC548 NPN Transistor
