KY-023 Joystick Dual Axis XY Joystick Module

The KY-023 Joystick Module is a Dual Axis XY module that allows you to control the X and Y axes of your Arduino project. Joystick Module has 5 male header pins, and it is compatible with many popular electronics platforms like Arduino, Raspberry Pi, ESP32 and others.

This XY Joystick Module is a small, inexpensive device that can use to control a variety of projects. The Dual AXIS XY Joystick Module has two axes, which can use to control movement or input. The joystick also has a button, which can use to perform actions such as firing a gun or taking a picture.

The +5V pin is connected to the 5V power supply of your Arduino or other microcontroller. The GND pin is connected to the ground of your Arduino or other microcontroller. The VRX and VRY pins output analog voltages that are proportional to the position of the joystick on the x-axis and y-axis, respectively. The SW pin is a digital output that is high when the joystick is pressed and low when the joystick is not pressed.

The Dual AXIS XY Joystick Module works by using a biaxial potentiometer to control the X and Y axis. When pushed down, it activates a switch. Based on the PS2 controller’s joystick, it’s used to control a wide range of projects from RC vehicles to color LEDs.

The XY AXIS Joystick Module is a small, inexpensive device that can use to control a variety of projects. KY-023 is a dual-axis joystick module that uses a biaxial potentiometer to control the X and Y axes. When pushed down, it activates a switch.

Features : –

The XY AXIS Joystick Module is very easy to use. The Dual AXIS XY Joystick has two axes of movement, which means it can use to control two different variables in your project. This makes it more versatile than single-axis joystick modules.

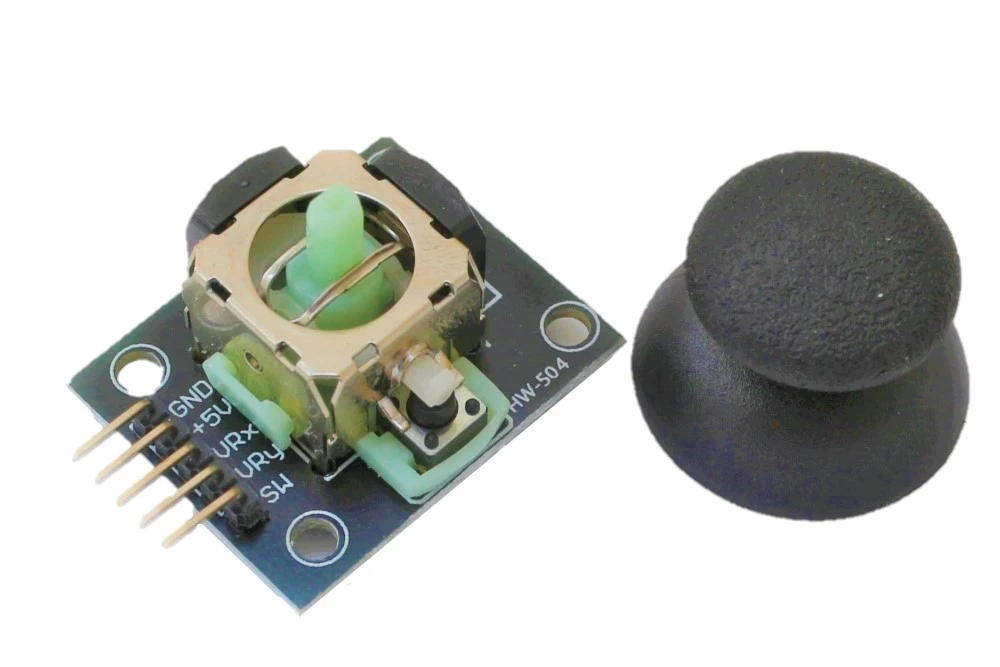

The HW-504 joystick module is a breakout board that allows you to connect a joystick to an Arduino or other microcontroller. It has two analog inputs for the X and Y axes of the joystick, as well as a digital input for the button. The module also has a 5V power input.

• Two independent Potentiometer: one for each axis ( X and Y)
• Auto return to center position
• Low weight
• Cup-type Knob
• Compatible to interface with Arduino or with most microcontrollers

KY-023 Joystick Module Specifications

The XY Joystick Module has a switch that can use to trigger events in your project. This makes it a versatile device that can use for a variety of purposes. The KY-023 Joystick Module is made of durable materials and is design to withstand the rigors of everyday use. This makes it a reliable device that can use in long-term projects.

To use the HW-504 joystick module, you will need to connect the X and Y axis pins to the analog inputs of your microcontroller. The button pin can be connected to any digital pin. You will also need to connect the power pin to the 5V power supply of your microcontroller.

• Operating Voltage: 5V
• Internal Potentiometer value: 10k
• 2.54mm pin interface leads
• Dimensions: 1.57 in x 1.02 in x 1.26 in (4.0 cm x 2.6 cm x 3.2 cm)
• Operating temperature: 0 to 70 °C

KY-023 Joystick Module Application

The KY-023 Joystick Module is a versatile and easy-to-use module that can use in a wide variety of projects. If you are looking for a way to add user input to your Arduino or other microcontroller project, the KY-023 Joystick Module is a great option.

Once the module is connected, you can use the analog inputs to read the position of the joystick. The X axis will return a value between 0 and 1023, with 0 being the leftmost position and 1023 being the rightmost position. The Y axis will return a value between 0 and 1023, with 0 being the bottommost position and 1023 being the topmost position.

• Camera Pan/Tilt Control
• Game Input/Control
• Robot Control
• Analog Input of Parameters
• Widely use in DIY projects

KY-023 Joystick Module Pin Configuration : –

The KY-023 Joystick Module is only 34 x 39 x 26 mm and weighs 12 g and it is easy to use, making it a good choice for beginners. The KY-023 Joystick Module operates at 5V. The module has 5 male header pins:

• +5V (5V Pin)
• GND (Ground Pin)
• VRX (voltage proportional to x-axis)
• VRY (voltage proportional to y-axis)
• SW (Switch)

Package : –

1 x KY-023 Analog Joystick Dual Axis XY Joystick Module
