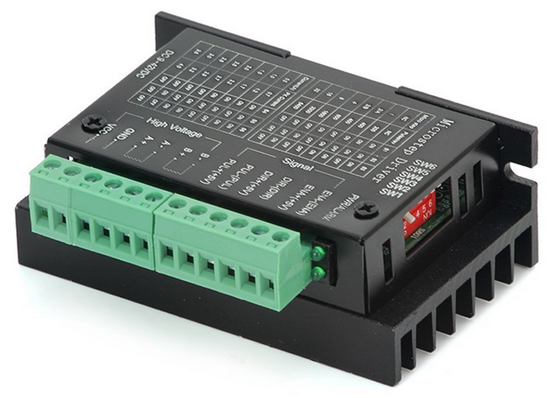

TB6600 Stepper Motor Driver Controller Nema 17 TB6600

The TB6600 Stepper Motor Driver single axis drive is a low cost micro stepping drive. It is suitable for driving 2-phase and 4-phase hybrid stepper motors.

The TB6600 micro stepping driver is built around the Toshiba TB6600HG IC and it can be used to drive two-phase bipolar stepper motors.

TB6600 Arduino is an easy-to-use professional stepper motor driver, which could control a two-phase stepping motor.

It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. TB6600 Arduino stepper motor driver has a wide range power input, 9~42VDC power supply. And it is able to output 4A peak current, which is enough for the most of stepper motors.

With a maximum current of 3.5 A continuous, the TB6600 driver can be used to control quite large stepper motors like a NEMA 23.

Make sure that you do not connect stepper motors with a current rating of more than 3.5 A to the driver.

The driver has several safety functions built-in like over-current, under-voltage shutdown, and overheating protection.

The stepper driver supports speed and direction control. You can set its micro step and output current with 6 DIP switch. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability.

Features: –

• Support 8 kinds of current control
• Support 7 kinds of micro steps adjustable
• The interface adopts high-speed optocoupler isolation
• Automatic semi-flow to reduce heat
• Large area heat sink
• Anti-high-frequency interference ability
• Input anti-reverse protection
• Overheat, over current and short circuit protection

TB6600 Stepper Motor Driver Specifications:-

• Input Current: 0~5A
• Output Current: 0.5~4.0A
• Control Signal: 3.3~24V
• Power (MAX): 160W
• Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
• Temperature: -10～45℃
• Humidity: No Condensation
• Weight: 0.2 kg
• Dimension: 96 * 71 * 37 mm
