Nextion NX8048T050 5 Inch LCD TFT Intelligent Touch Display Module

Nextion NX8048T050 5 Inch LCD TFT Intelligent Touch Display Module is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (loT) or the consumer electronics field.

5 Inch LCD TFT Intelligent Touch Display Module is the best solution to replace the traditional LCD and LED Nixie tubes. Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. Nextion TFT Display lets users avoid the hassle of wiring.

We noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads.

With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART. Nextion 5.0″ HMI Arduino TFT Led Intelligent Display Module Screen with integrated 4-wire Resistive Touch Panel 800×480 Nextion NX8048T050 5 Inch LCD TFT Intelligent Touch Display Module is a powerful 5.0″ HMI, which is the member of Nextion family. Features include a 5.0″ TFT 800×480 resistive touchscreen display, 16M Flash, 2KByte RAM, 65k colors

Features: –

• Compatible with Raspberry Pi A+, B+, and Raspberry Pi 2, Arduino
• 800 x 480 Resolution
• RGB 65K true to life colors
• TFT Screen with integrated 4-wire Resistive Touch Panel For Raspberry Pi and Arduino
• Easy 4 pin interface to any TTL Serial Host For Arduino
• 16M Flash memory for User Application Code and Date
• Onboard micro-SD card for firmware upgrade
• Visual Area:108mm(L)×64.8mm(W)
• Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
• 5V410mA power consumption
• CE/EMC, RoHS certified (certificates)

Nextion NX8048T050 5 Inch LCD TFT Specifications

Related Links

• Wiki
• Code Example

Package: –

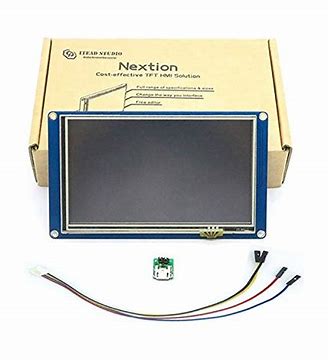

1 x Nextion NX8048T050 5 Inch LCD TFT
