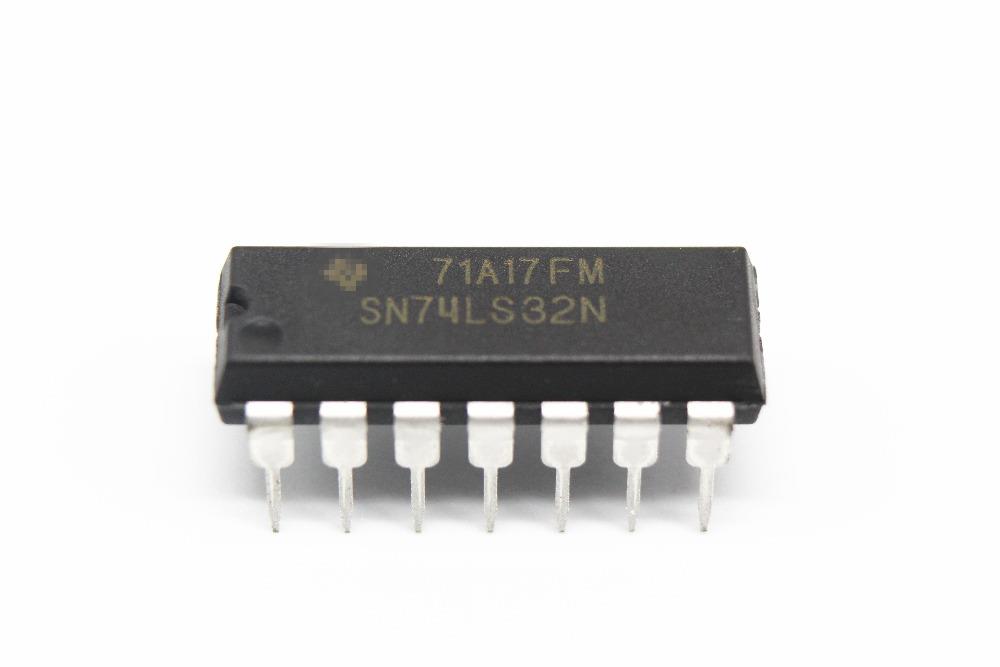

Name: 74LS32 Quad 2 Inputs OR Gate IC
SKU: 13328
Price: 25.00 PKR
Availability: OutOfStock

74LS32 is a quad 2-input OR gate IC. It is a member of the 7400 series of ICs, which are based on the resistor-transistor logic (RTL) logic family. 74LS32 has four independent OR gates, each of which has two inputs and one output. The output of each OR gate is high if either or both of its inputs are high. The output of the 74LS32 is low if all of its inputs are low.

74LS32 is a popular IC that can use to create a variety of digital circuits. It is a quad 2-input OR gate, which means that it has four independent OR gates that can use to combine two input signals into a single output signal.

Each gate has two inputs that are why it is named Quad 2-Input OR Gate. It can use in forming basic logic gate circuits, encoders and decoders, multiplexer and demultiplexer, and oscillator circuits.

74LS32 or 74LS32N has 12 input output pins for a total of four OR gates. To use the 74LS32 Logic gate IC, just power it using the Vcc and ground pins. The typical operating voltage of the IC is +5V, but it can also operate at +7V.

74LS32 is a Dual Input OR Gate with Quad package. It contains four independent gates each of which performs the logic OR function. It has 12 input output pins for a total of four OR gates.

Features : –

74LS32 Logic gate IC, just power it using the Vcc and GND pins. The typical operating voltage of the IC is +5V, but it can also be operated in +7V. The output voltage of the IC on the pin Y will be equal to the operating voltage of the IC. It can use in forming basic logic gate circuits, encoders and decoders, multiplexer and demultiplexer and oscillator circuits.

74LS32 IC has several benefits, including:

Versatility: The 74LS32 can be used in a wide variety of digital circuits.
Reliability: The 74LS32 is a reliable IC that can withstand harsh environments.
Low cost: The 74LS32 is a relatively inexpensive IC.
Ease of use: The 74LS32 is easy to use and can be implemented in a variety of ways.

74LS32 Quad 2 Inputs OR Gate IC Specifications : –

74LS32 is a valuable IC for any hobbyist or engineer with an interest in digital circuits. It is a versatile, reliable, and inexpensive IC that can use in a wide variety of applications.

here are some of the specifications of the 74LS32 IC:

Quad 2-input OR gate: four independent OR gates, each of which has two inputs and one output.
Logic family: low-power Schottky (LS) logic IC. LS logic ICs are faster and use less power than older resistor-transistor logic (RTL) ICs.
Operating voltage: operates on a supply voltage of 4.75 to 5.25 volts.
Input current: The maximum input current for each input is 400 nanoamperes.
Output current: The maximum output current is 25 milliamperes.
Propagation delay: The propagation delay is 15 nanoseconds.
Power dissipation: The power dissipation is 400 milliwatts.

74LS32 Quad 2 Inputs OR Gate IC Applications : –

74LS32 is just one of many ICs that can use to create digital circuits. With a little creativity and knowledge, you can use the 74LS32 to build all sorts of interesting and useful devices.

74LS32 IC can use in a wide variety of applications, including:

Counters: can use to create counters.
Decoders: can use to create decoders.
Multiplexers: can use to create multiplexers.
Oscillators: can use to create oscillators.
Logic gates: can use to create logic gates.
Other applications: can use in a variety of other applications, such as alarm circuits, traffic lights, and digital clocks.
