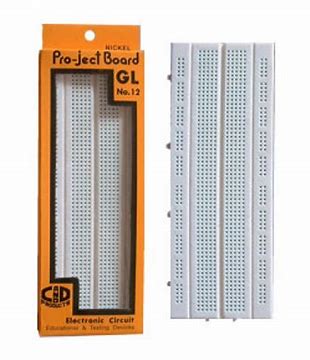

830 Point Breadboard Solderless MB102 Prototype PCB

@ JK HALLROAD

830 Point Breadboard Solderless MB102 Prototype PCB is a solderless (plug-in) breadboard with 830 connection tie-points (i.e. 830 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable.

 140.00

In stock

830 Point Breadboard Solderless MB102 Prototype PCB is a solderless (plug-in) breadboard with 830 connection tie-points (i.e. 830 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable.

The BB830 has a 630 tie-point IC-circuit area plus four 50 tie-point power rails. The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows.

The internal contacts are phosphor bronze with a plated nickel finish. A peel able adhesive tape backing is provided for attaching it to a surface and an optional metal back plate is provided. BPS Breadboards are Lead-Free and RoHS Compliant. Finished projects can be moved to a BR1 or SB830 Solderable PC Breadboard to make them permanent.

If you’re prototyping a circuit big or small, then you’ll want a quality breadboard, and this one is awesome! It’s got dual isolated power rails perfect for complex projects, 830 tie points, and sturdy spring connectors.

830 Point Breadboard Solderless MB102 Prototype PCB are used to prototype circuits without the requirement of generating a Printed Circuit Board [PCB]. Breadboards may be used to test and evaluate new circuit designs in development or prototype changes in a existing designs.

830 Point Breadboard Solderless MB102 Prototype PCB circuit boards are typically made out of nickel-plated clips, inserted into a plastic housing. On the bottom side of the solderless circuit board is aluminum backing with voltage and grounding posts. All these materials that make up the circuit board will last for up to 5,000 insertion cycles and testing.

Features: –

  • Mb102 Breadboard 830
  • 830 Solder-less Points
  • Ideal for Experimenting With Circuit Design In Labs
  • Compatible with resistance, diodes, transistors, LED’s , Capacitors and other types of electronic components
  • Completely reusable
  • Colored coordinates for easy components placement.
  • Phosphor bronze nickel plated spring clips.
  • Accept a variety of wire sizes 20-29 AWG

830 Point Breadboard Solderless MB102 Prototype PCB Specifications: –

  • Size : 166 mm X 54 mm
  • 2 distribution strip 1 Terminal strip
  • 200 distribution holes
  • 630 terminal hoes
  • ABS plastic

830 Point Breadboard Solderless MB102 Prototype PCB Technical Details: –

  • Temperature range up to 85 °C
  • Contact points: 830

Specification

Breadboard

Type

EIC-102

No. of terminals

830

Length

165 mm

Width

55 mm

Content

1 pc(s)

Datasheet: –

busboard.com/…/BPS-DAT-(BB830)-Datasheet.pdf

Package: –

1 x 830 Point Breadboard Solderless MB102 Prototype PCB
