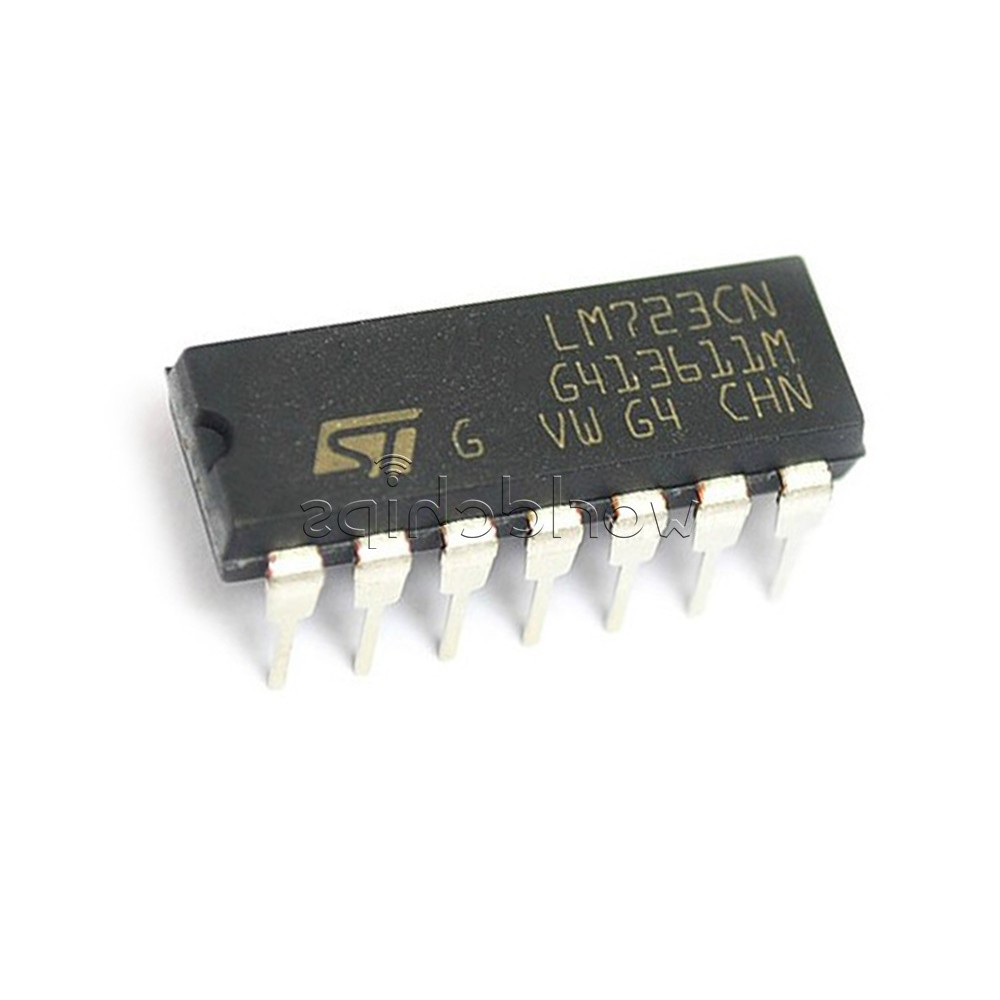

IC LM723 Voltage Regulator 37V/150mA

@ MODERN HALLROAD

The LM723CN is identical to the LM723 except that the LM723C has its performance ensured over a 0°C to +70°C temperature range, instead of −55°C to +125°C

The LM723 / LM723CN is also useful in a wide range of other applications such as a shunt regulator, a current regulator or a temperature controller.

 60.00

Out of stock

IC LM723 is the adjustable voltage regulator IC designed for series regulator application, with a current output of 150mA without external pass transistor.

IC LM 723 / LM723CN is a voltage regulator designed primarily for series regulator applications.

The circuit features extremely low standby current drain, and provision is made for either linear or foldback current limiting.

If we use an transistor externally, it can able to provide up to 10A of current to drive any desired load up to this range.

The input supply is 40v maximum and its output voltage ranges from 3v to 40v. The IC 723 VOLTAGE REGULATOR is also used in various applications like shunt regulator, current regulator.

The IC 723 REGULATOR having low standby current drain, which allow us to use the IC as linear or fold back current limiting, with an operating temperature ranges from -55 °C to 150 °C.

The 723 voltage regulator is commonly used for series voltage regulator applications. It can be used as both positive and negative voltage regulator.

IC LM723 has an ability to provide up to 150 mA of current to the load, but this can be increased more than 10A by using power transistors. It also comes with comparatively low standby current drain, and provision is made for either linear or fold-back current limiting.

LM723 IC can also be used as a temperature controller, current regulator or shunt regulator and it is available in both Dual-In-Line and Metal Can packages.

The input voltage ranges from 9.5 to 40V and it can regulate voltage from 2V to 37V.

Another important point to note about this IC is that the supply voltage at the lowest point on the ripple waveform, should be at least 3 V greater than the output of the regulator and greater than Vref.

Features: –

  • The unnecessary o/p current will be 150mA without using an exterior pass transistor.
  • The maximum input supply voltage will be 40V.
  • It offers modifiable o/p from 3volts to 37volts.
  • These ICs are used to make switching & linear regulator.
  • It supplies 10A o/p current with the help of an external pass transistor.
  • These ICs are used for different operations such as positive, negative, series, floating, and shunt.

IC LM723 Voltage Regulator Specifications: –

  • Excessive output current of 150mA without external pass transistor.
  • Better Input supply voltage of maximum 40v.
  • Provide adjustable output from 3v to 37v.
  • Used in making linear or switching regulator.
  • Able to provide 10A of output current with use of external pass transistor.
  • Used for various operation like positive supply, negative supply, series, shunt, and floating.

IC LM723 Voltage Regulator Technical Parameters: –

  • Input supply voltage is up to 40v maximum
  • Voltage output ranges from 3v to 37v
  • Reference voltage is nearly 7v always
  • Current from pin Vz is 25mA
  • Current from pin Vref is 15mA
  • Operating temperature range: -55°C to +150°C
  • Line regulation of 0.01%Vout
  • Load regulation of 0.03%Vout
  • Ripple rejection of 74 dB

IC LM723 Voltage Regulator Applications: –

  • Basic high and low voltage regulators can be designed by connecting appropriate external components with this IC.
  • Linear, switching and floating regulators.
  • Series and shunt regulators.

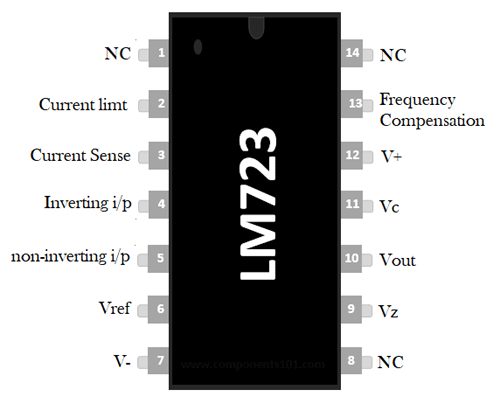

IC LM723 Voltage Regulator Pin Description: –
No. Pin Name Description
1 NC Not connected
2 Current Limit This terminal uses for current limiting
3 Current Sense This terminal uses for current limiting and foldback application
4 Inverting i/p Helps in providing constant output voltage
5 Non-inverting i/p Used to provide reference voltage to the op-amp inside
6 Vref Gives reference voltage of nearly 7v
7 -Vcc Ground
8 NC Not connected
9 Vz Used in the application of negative voltage regulator
10 Vout Output pin of the IC
11 Vc This terminal is directly supplied from the supply when not connected to series pass transistor
12 V+ Positive supply input
13 Frequency Compensation This terminal helps in reducing noise, by adding a capacitor of 100pf with it
14 NC Not connected
IC LM723 Voltage Regulator Datasheet: –

ti.com/lit/ds/symlink/lm723.pdf

Package: –

1 x IC LM723 Voltage Regulator 37V/150mA
